What change gears are these

[Norfolk BoyParticipant @norfolkboy]

[Norfolk BoyParticipant @norfolkboy]

Hello all,

I have been lurking around this fascinating site for a while and would like to introduce myself(couldn't see a special place to do it) . I have launched myself into the world of metal spinning. I have bought a dodgy Myford Super 7 and a small chinese mill came with it. I wanted a better mill so tracked down a one owner from new Tom Senior E type and the chap also had a one owner from new Harrison M250 Imperial so it would have been rude not to help relieve him of it I now seem to be inuundated with machinery.

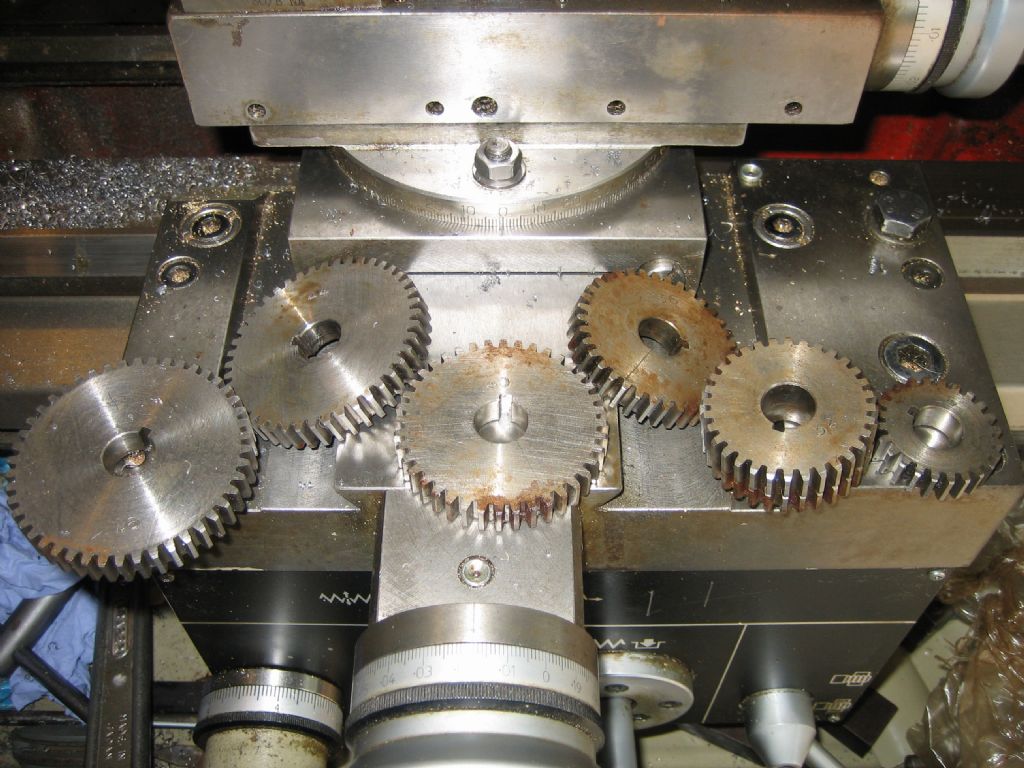

My question however is I thought the somewhat rare changewheels that came with it did not look right. Can someone identify them? 46,44,40,36,32 2off, 24, 14.15mm dia internal. I suspect they may be boxford as he briefly had a boxford and didn't like it.

Regards Alan

[Brian WoodParticipant @brianwood45127]

Hello Alan,

Welcome aboard

A little more information would help us.

First of all, do they all mesh one to the other? Assuming they do, what is the outside diameter of the 46 T wheel?

I can't be sure, but do they all have a keyway and what width is that? Most of them seem to be the same width, what is that value please? The one extreme right [the 24 T gear?] looks thinner than the others so what width is that please?

With that info we can help you more

Brian

[SaxalbyParticipant @saxalby]

Hi Alan,

My Boxford gears are 18DP with a 9/16 inch bore.

My 40T gear is 2.337 inch dia.

Regards

[Speedy Builder5Participant @speedybuilder5]

They do look like BOXFORD, but not change wheels. I reckon they come from the Norton Change gearbox on the Boxford AUD etc.

[Norfolk BoyParticipant @norfolkboy]

Hi Brian,

First of all, do they all mesh one to the other?

Yes they do Assuming they do, what is the outside diameter of the 46 T wheel? 2.667 inch

Do they all have a keyway and what width is that? 0.162 inch

Most of them seem to be the same width, what is that value please? yes 0.3740 inch.

The one extreme right [the 24 T gear?] looks thinner than the others so what width is that please? Optical illusion they are all same thinckness teeth type and centre hole keyway are identical.

My 40T measures 2.3265 I believe the bores are 9/16"

Thanks for your help

[Brian WoodParticipant @brianwood45127]

Hello Alan,

Thanks for the measurements.

These are all 18 DP wheels, thickness is 3/8 inch and the keyways will be a nominal 5/32 inch

The bores you say are 9/16 inches Your 40 T wheel is also 18 DP . The rule is (N+2)/DP = Diameter in inches

We can rule out Myford and Holbrook wheels, they are 20 DP. South Bend and Boxford are I believe 18 DP [someone confirm please]

Thus far it seems Saxalby has pinned them down for you.

I hope that helps you find a home for them

Brian

[BazyleParticipant @bazyle]

Yes they sound like Boxford Bud/CUD lathe wheels but perhaps after-market as the old ones above 2.5 in have the cast in thinning.

[SaxalbyParticipant @saxalby]

Hi Bazyle,

My Boxford gears (supplied by Boxford) are plain as per Alans picture. Only the large 100/127 pair have cast in thinning.

Regards

[Norfolk BoyParticipant @norfolkboy]

Thanks Chaps,

I shall sell them accordingly and put that money towards a solution for Metric changewheels I need for the Harrison M250. I have the original Harrison Order document from May 1984 and a set of 11 changewheels to cut 0.4mm-8mm was £101 +vat as an option, If only someone bought a few sets they could have made a killing.

Regards Alan
