Brass Hexagon Sizes

[David CambridgeParticipant @davidcambridge45658]

Hi All

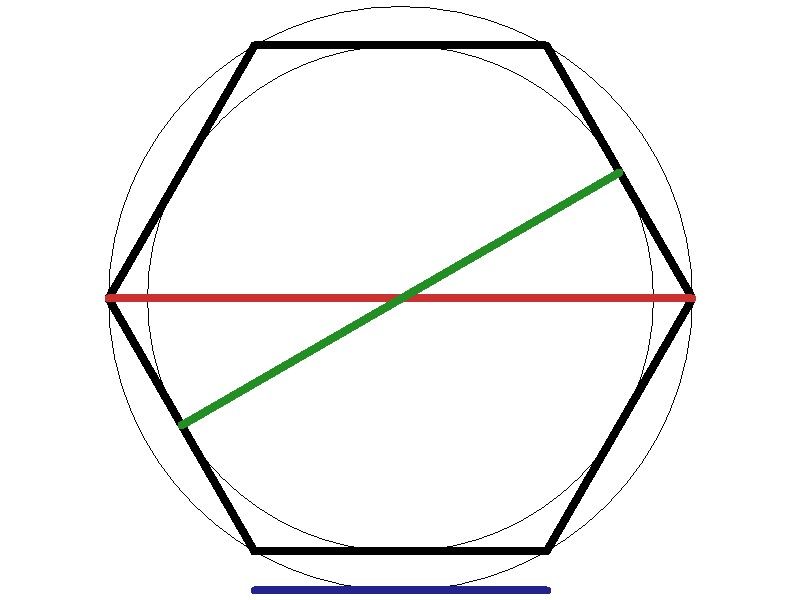

A very basic question this time – if I bought some 10 mm brass hexagon, which dimension does the 10 mm in the below diagram refer to (red, green, blue or none of them ?)

Thanks

David

[David CambridgeParticipant @davidcambridge45658]

Brass Hexagon Sizes

[Tim StevensParticipant @timstevens64731]

Green – the size for M6 screws and nuts. And, incidentally, the easiest of the three to measure.

Cheers, Tim

[mechman48Participant @mechman48]

I've always measured AF ..across flats.. Green

George

[David CambridgeParticipant @davidcambridge45658]

Thanks Tim – much appreciated (this forum is fantastic, less than five minutes to get an answer!)

[David CambridgeParticipant @davidcambridge45658]

And thanks to George as well!

[Neil WyattModerator @neilwyatt]

You know David, that was a really good question to ask. I like the diagram.

Neil

[Another JohnSParticipant @anotherjohns]

It is a good question, as Neil says.

I remember wondering what "AF" meant – as England and Canada (and…) speak different versions of the same language – many of the technical designations for materials are different.

It was one of those forehead-slappingly obvious ones when I realized that it meant "Across the Flats" – at least, I think that's what it means!

John.
