Unusual Go-No Go Tool?

[Martin King 2Participant @martinking2]

Hi all,

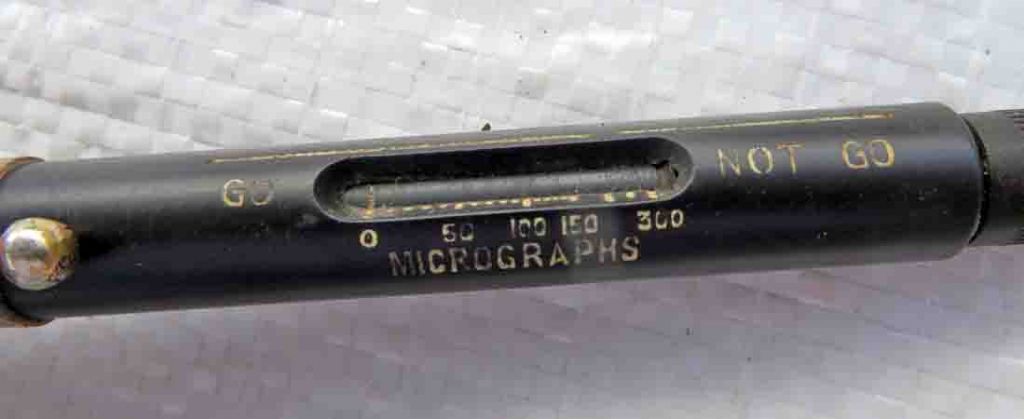

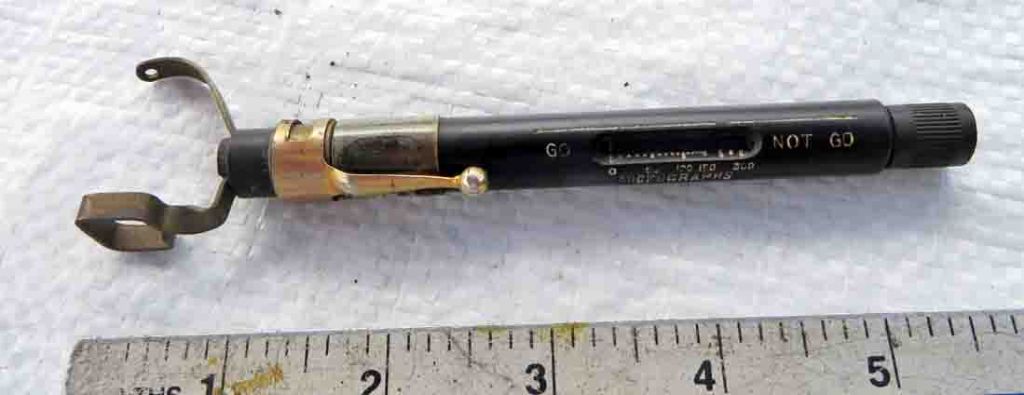

This little item was in the bottom of a crate of tooling we just got, I think it is incomplete but would love to know its specific use? Turning the end moves the pointer along the scale marked "Micrographs"

Cheers, Martin

[Martin King 2Participant @martinking2]

[Michael GilliganParticipant @michaelgilligan61133]

I wonder if ‘Micrographs’ might be the manufacturer, rather than the scale.

MichaelG.

[old martParticipant @oldmart]

It is obviously made to fit in a coat pocket along with pens. What happens at the buisiness end when the scale is moved?

[Martin King 2Participant @martinking2]

Nothing seems to happe when the end cap is turned, as I said it looks incomplete?

Martin

[DC31kParticipant @dc31k]

The scale on it is non-linear (perhaps logarithmic), so that eliminates a vast amount of possible applications and opens up other possibilities.

[Chris Kirby 1Participant @chriskirby1]

Almost looks like some sort of sighting/viewing device on top. Look through the small hole and align something within the rectangular part?

[Martin ConnellyParticipant @martinconnelly55370]

I wonder if the scale is logarithmic, it is clearly not a linear scale but I wonder if it is a sine/cosine/tangent curve. Is there a spring in the tool?

Martin C

[Michael GilliganParticipant @michaelgilligan61133]

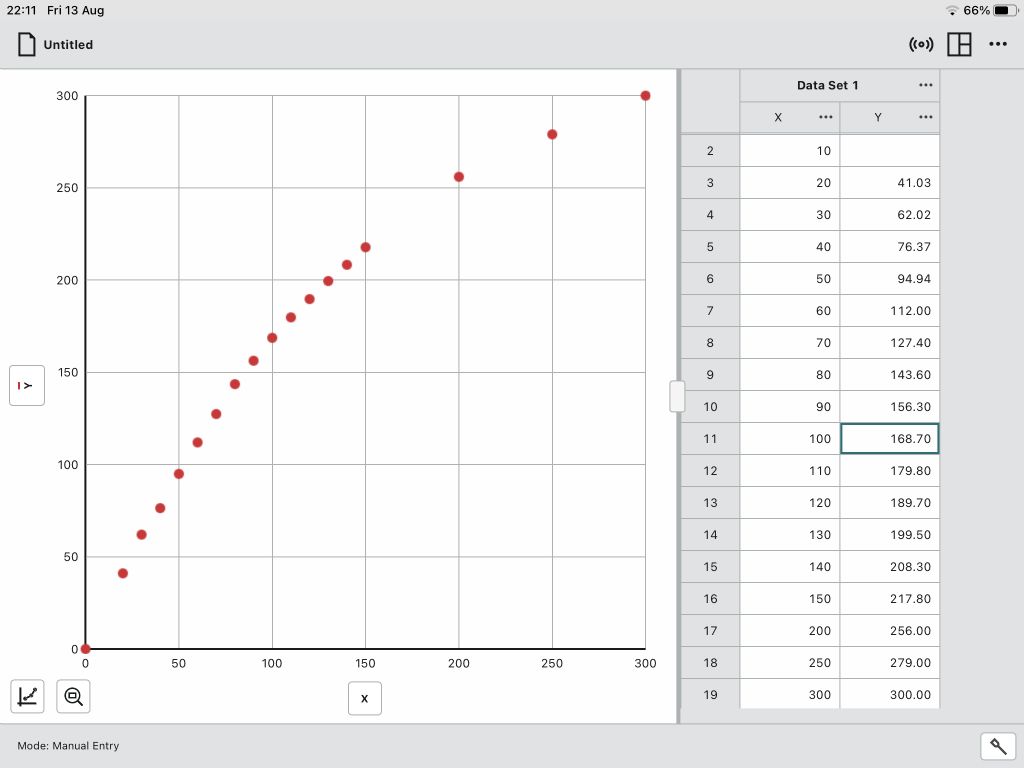

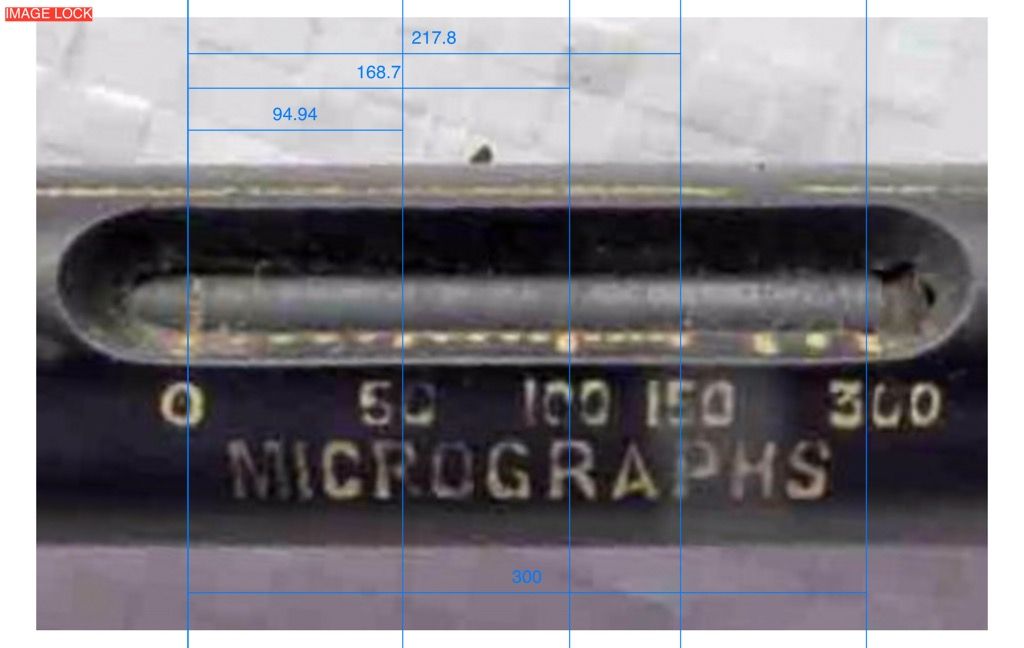

Here’s a first stab at calibrating that scale

.

.

Now you can all try curve-fitting, whilst I go out for the day

MichaelG.

Edited By Michael Gilligan on 13/08/2021 09:01:01

[Martin ConnellyParticipant @martinconnelly55370]

If you add 60 to each scale point you get close to a logarithmic progression. The deviation may be due to small errors in the numbers for the scale due to it being measured from a photo.

Martin C

[Martin King 2Participant @martinking2]

All waaay over my head! !

Are we saying that the tool might be complete?

Martin

[Martin King 2Participant @martinking2]

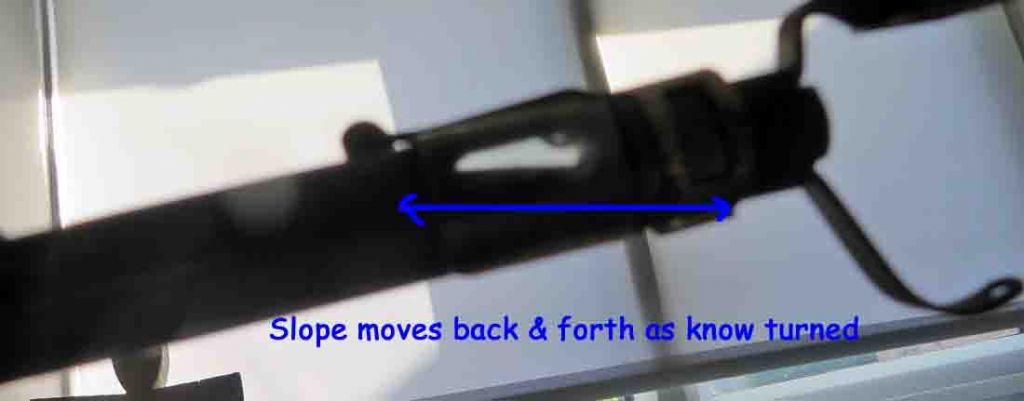

No spring that i can see but there does appear to be a kind of small window by the clip and as one winds the end knob a sloping point moves back and forth in the window. window is quite murky and discolored so not easy to see.

Hers a pretty ropy pic:

[Michael GilliganParticipant @michaelgilligan61133]

With considerably less confidence … I have inserted values for most of the sub-divisions

.

.

If anyone wants to play; please feel free to offer corrections and/or curve-fitting

MichaelG.

.

Edit: __ This looks pretty good to me; but I still don't know what it’s for

.

Edited By Michael Gilligan on 13/08/2021 22:24:22

[SillyOldDufferModerator @sillyoldduffer]

The non-linear scale implies the gauge is for measuring intensity rather than a physical dimension, and the peep hole and squared top suggest a simple optical assembly is missing.

As the instrument is a pocket tool, it's used by someone walking about. The peep hole suggests she eyeballs the target. Sound and light, hence heat, are perceived by humans on a logarithmic scale. I think it's for judging the temperature of a furnace or flame for making glass, normalising steel, welding, or melting without boiling etc. Possibly confirming a lighting system is performing to specification.

Any sign of anything mechanical missing at the top? If it's a visual intensity gauge I'd expect the control wheel to adjust an aperture between the peep hole and the lens carrier, now lost.

Dave

[Martin King 2Participant @martinking2]

Hi All,

Thanks for the helpful comments.

Does anyone want it? FOC and free postage!

Cheers, Martin

[Michael GilliganParticipant @michaelgilligan61133]

Posted by Martin King 2 on 14/08/2021 11:06:29:

Hi All,

Thanks for the helpful comments.

Does anyone want it? FOC and free postage!

Cheers, Martin

.

I would love to explore it further, Martin

MichaelG.

[Martin King 2Participant @martinking2]

Hi Michael,

It will be in the post to you on Monday morning. Please email me your address again as I seem to have mislaid it!

Cheers, Martin

[pgk pgkParticipant @pgkpgk17461]

SOD,

I was speculating that the square held the base of a tool that was snapped into place into your 'aperture'. Something like fixed and sprung divider arms as a quick sizing of some tiny items for consistency…
The attachment would be kept in a separate pouch.
But since evidently the arms are easily bent it's an odd choice of design for any real accuracy.

pgk

[SteviegtrParticipant @steviegtr]

Never mind. I am sure Michael will google it to death & surprise us all with it's use. Mnn.???.

Steve.

[Michael GilliganParticipant @michaelgilligan61133]

Posted by Steviegtr on 14/08/2021 18:04:20:

Never mind. I am sure Michael will google it to death & surprise us all with it's use. Mnn.???.

Steve.

.

Sorry Steve,but it has to be said :

I am sick of people assuming that I just 'Google' everything.

What I wrote was :

"I would love to explore it further"

… and you will see that I have already put quite a lot into the exploration.

PLEASE just give it a rest

MichaelG.

[SteviegtrParticipant @steviegtr]

Posted by Michael Gilligan on 14/08/2021 18:31:15:

Posted by Steviegtr on 14/08/2021 18:04:20:

Never mind. I am sure Michael will google it to death & surprise us all with it's use. Mnn.???.

Steve.

.

Sorry Steve,but it has to be said :

I am sick of people assuming that I just 'Google' everything.

What I wrote was :

"I would love to explore it further"

… and you will see that I have already put quite a lot into the exploration.

PLEASE just give it a rest

MichaelG.

Michael you have taken my post completely out of context. I was praising you for finding things that we rarely do. I always read your posts with great interest. If i seemed to offend it was not meant that way.

Steve.

[Michael GilliganParticipant @michaelgilligan61133]

Posted by Steviegtr on 14/08/2021 23:21:24:

[…]

If i seemed to offend it was not meant that way.

Steve.

.

O.K. Steve … let’s just say your comment touched a raw nerve.

MichaelG.

[SteviegtrParticipant @steviegtr]

Posted by Michael Gilligan on 14/08/2021 23:44:13:

Posted by Steviegtr on 14/08/2021 23:21:24:

[…]

If i seemed to offend it was not meant that way.

Steve.

.

O.K. Steve … let’s just say your comment touched a raw nerve.

MichaelG.

Michael i think you underestimate yourself. I have the impression that you are highly regarded on this forum. At least i look up to you. I did the item to death & came up with nothing. I really do hope you find what it is.

My Uncle worked at a nuclear plant in Cumbria some years ago & had a similar device , which he always kept in his top pocket. It was to make sure that any area he entered was not radio-active. I followed that path & found nothing. Hope you do better.

Steve.

[duncan webster 1Participant @duncanwebster1]

That would be a quartz fibre dosimetry, getting to be old hat when I was regularly visiting Sellafield, and that's a fair few years back. It's all done electronically now. I only had one scary moment, alarm went off continuous rather than the occasional beep. Turned out the battery was nearly flat. I don't glow in the dark

Edited By duncan webster on 15/08/2021 00:59:08

[Michael GilliganParticipant @michaelgilligan61133]

Posted by Steviegtr on 15/08/2021 00:00:45:

Michael i think you underestimate yourself. I have the impression that you are highly regarded on this forum. At least i look up to you. […]

.

Thanks for the positive thought, Steve … but the fact is: I have, in the past, suffered some extremely hurtful personal comments from individuals on this forum.

Let’s just leave it at that, please.

MichaelG.
