What’s this for…no.7?

[beeza650Participant @beeza650]

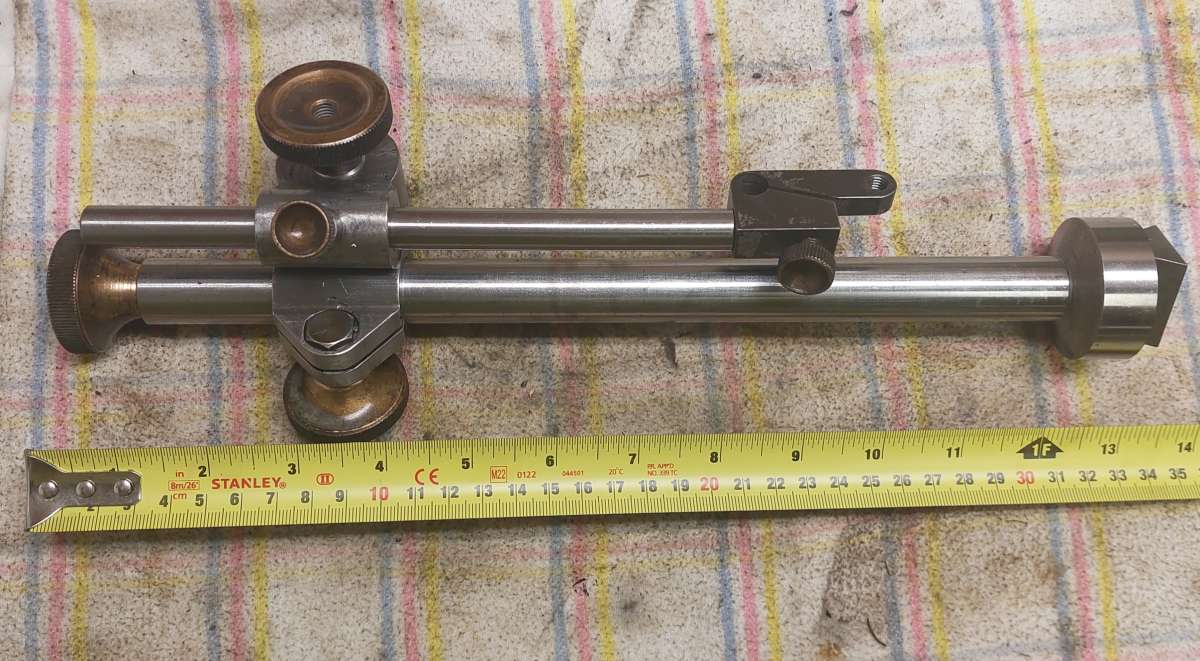

This is another shop made one. Sadly I washed the black paint off in my ultrasonic cleaner. Reverted to fairy liquid after that.

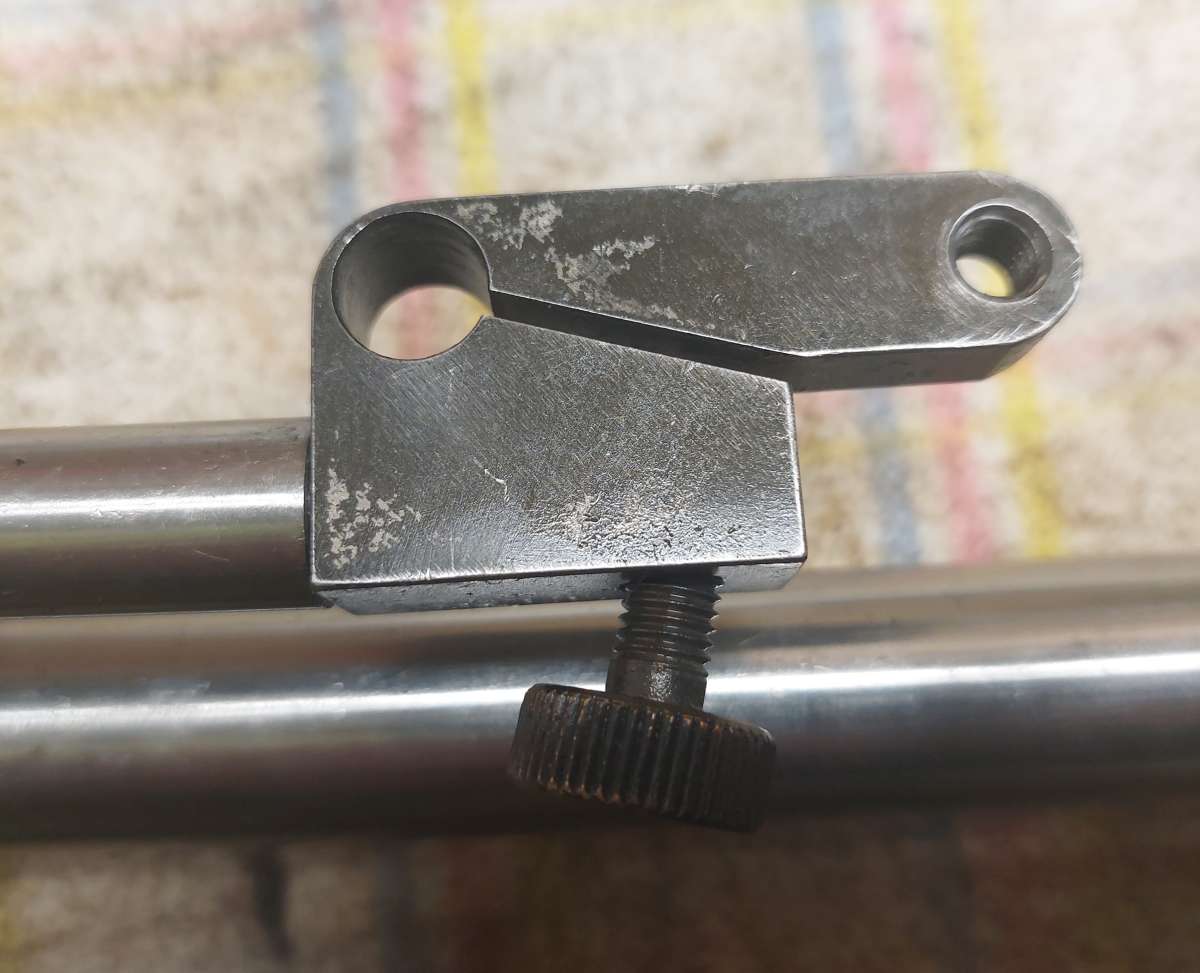

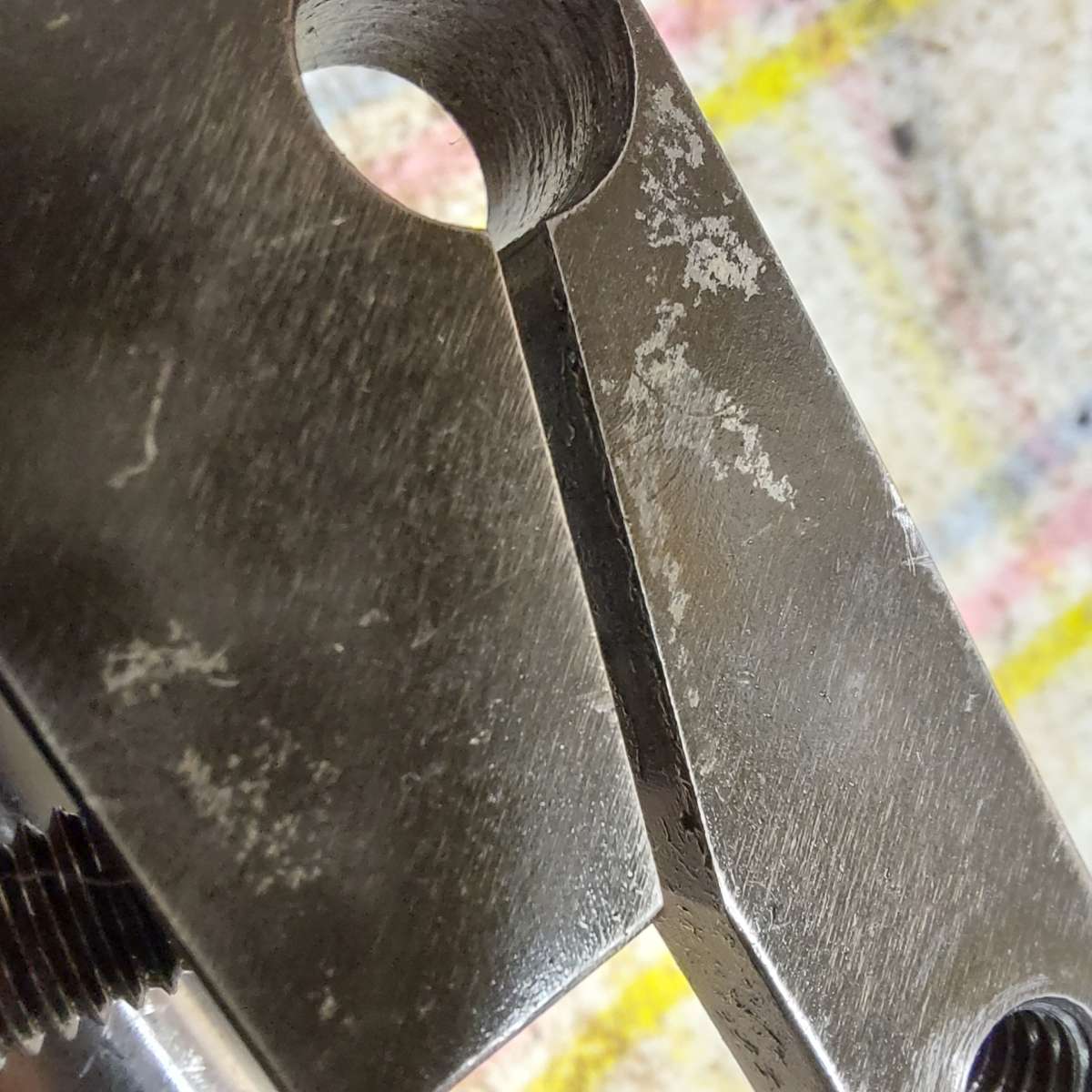

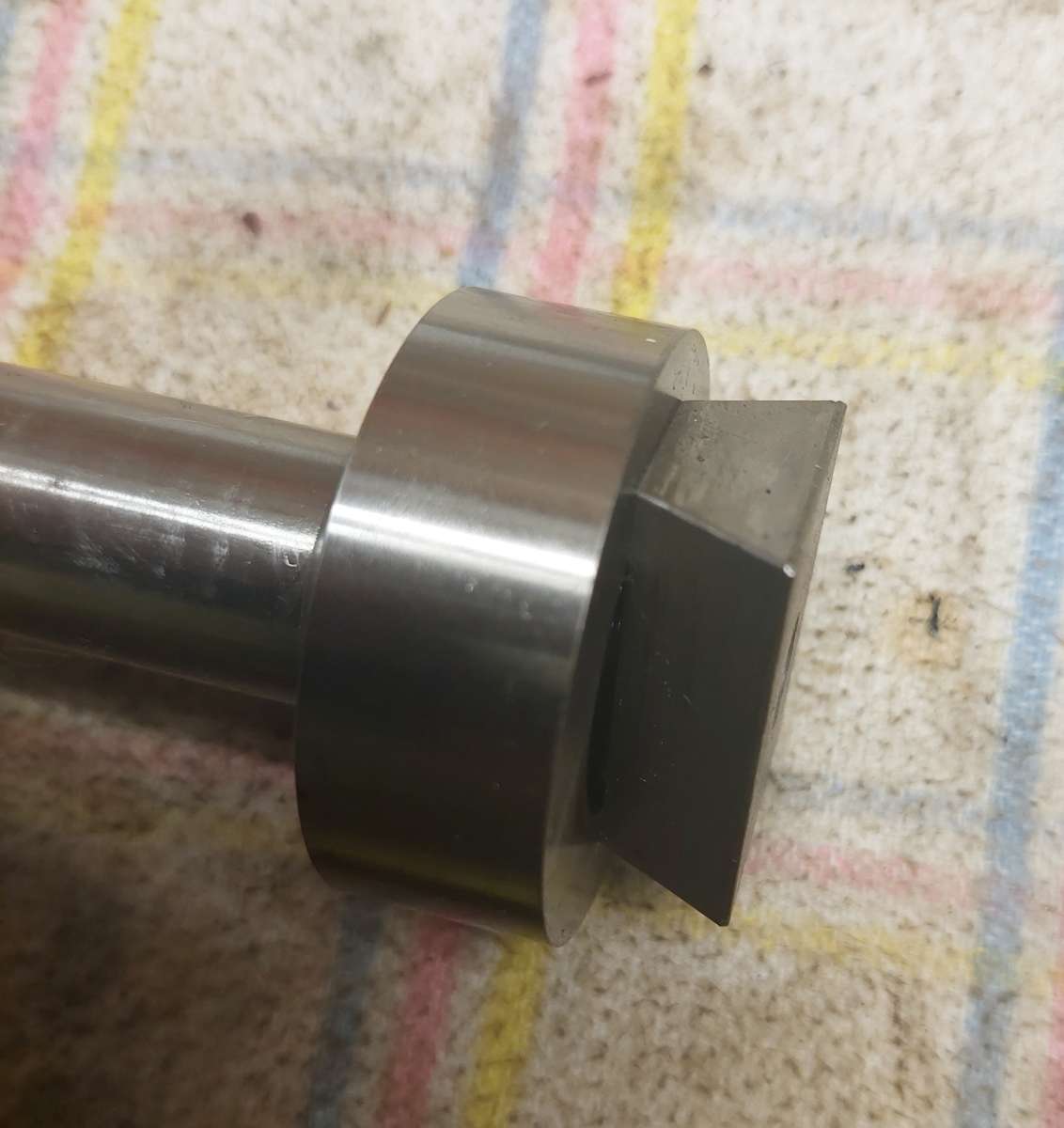

It’s very robust and obviously I have no table with that v slot. What’s really weird is the knurled screw only pushes then clamp open. Wonder why.

[BazyleParticipant @bazyle]

It is a holder for a dial test indicator for measuring things on a surface plate. The base would typically be 6 in long and about 2 in square, with a ground base.
The screw is not opening the slot or hole per se; it is to make a fine position adjustment of the indicator that is held with a screw into the very end tread.
look up “mercer indicator stand”.

[DiogenesParticipant @diogenes]

Because it’s not a clamp, it’s a fine adjustment for the DTI/gauge that is likely to be hung off it..

Bazyle’s fingers work faster

[beeza650Participant @beeza650]

Ahhhh. I see….thanks.

[peak4Participant @peak4]

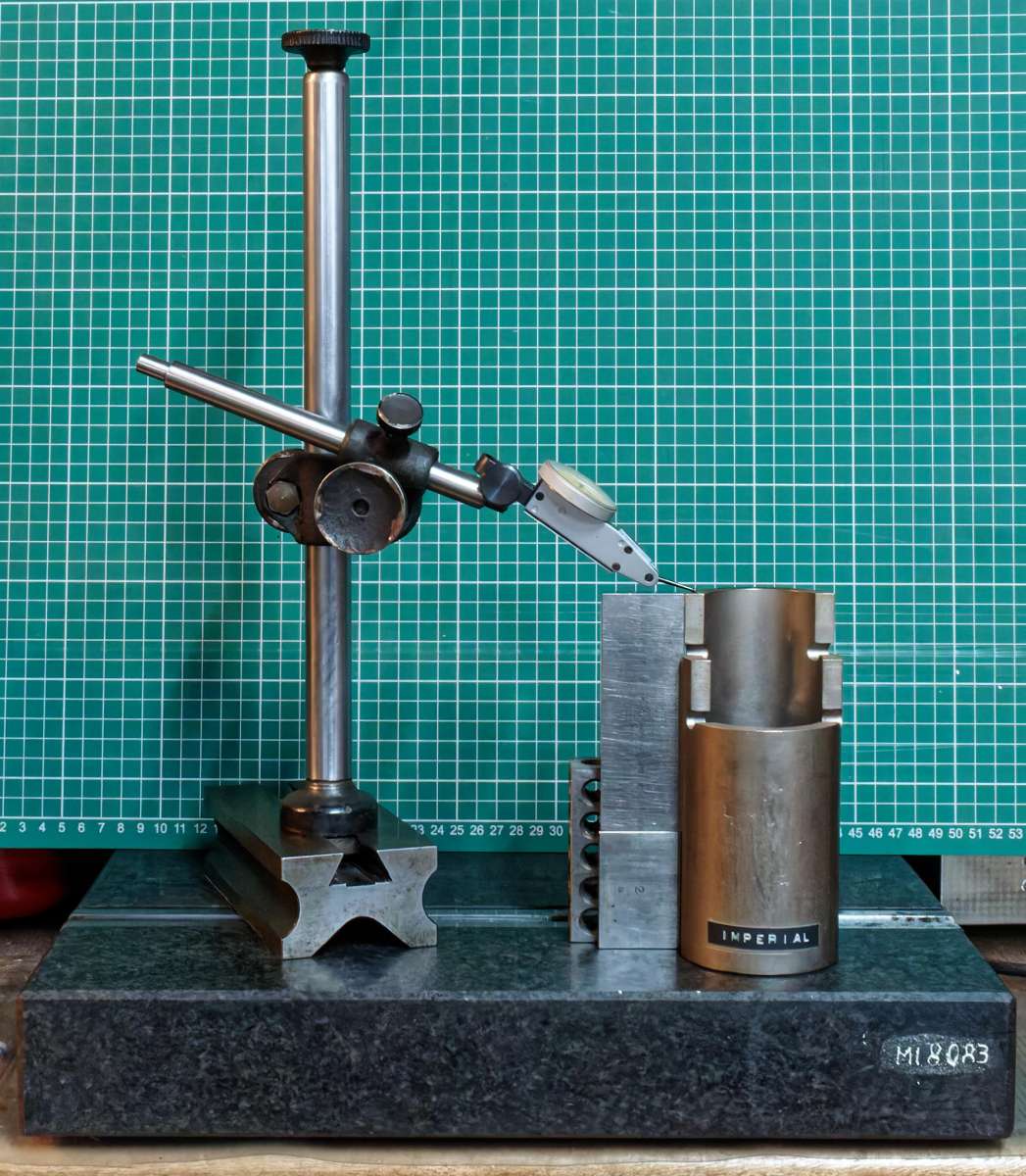

Here you go, very much a lash-up, just to show one use, and the sort of base you’re seeking.

Here used to compare the 6″ stack of Jo blocks to what I believe is a depth micrometer calibration gauge, rescued from a defunct metrology repair company.
I picked up a set of imperial & metric ones for very little money.

Bill

[beeza650Participant @beeza650]

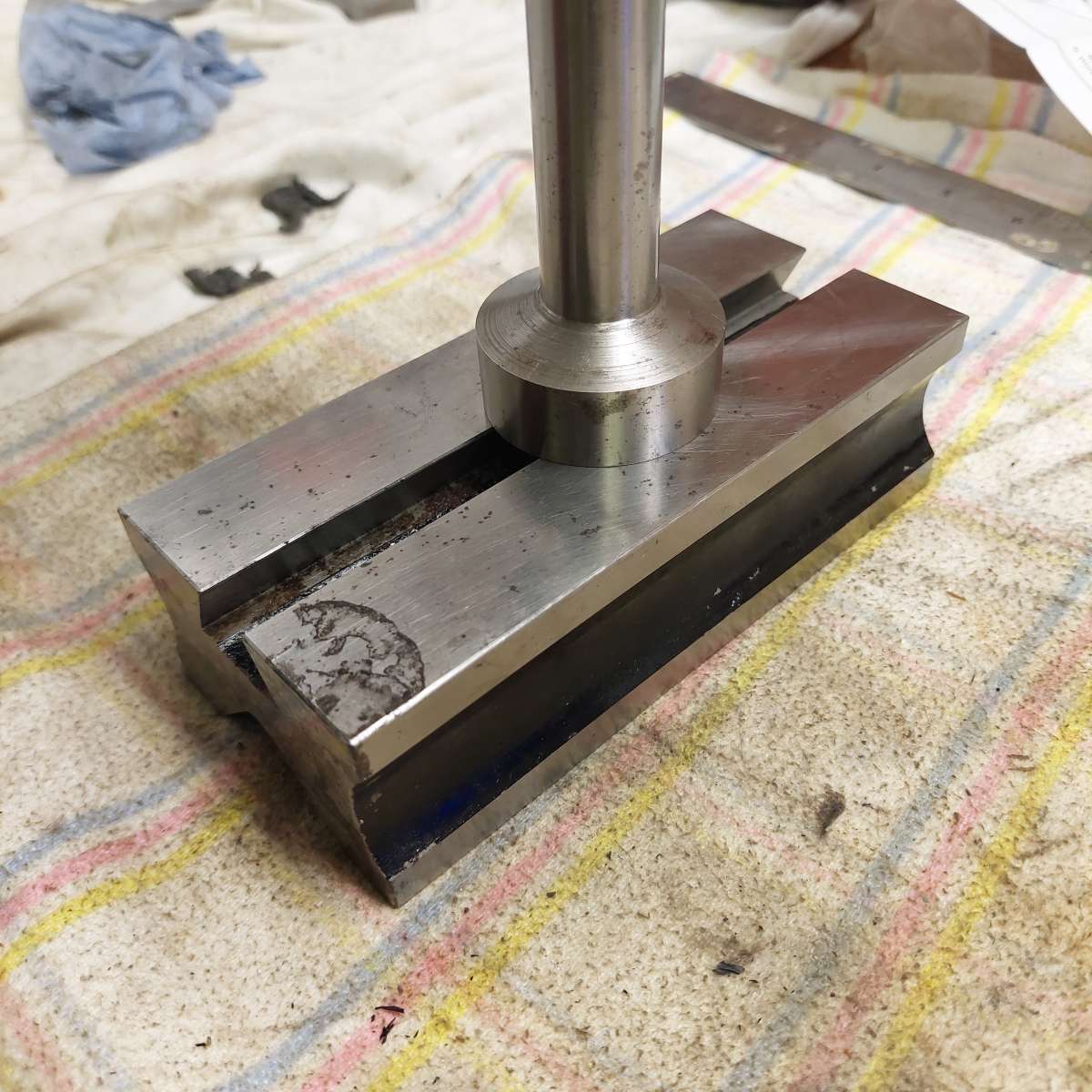

<p style=”text-align: center;”>Peeeerfect…I have just the v block. Going to check it firs this second</p>

[Martin KyteParticipant @martinkyte99762]

You are really missing a trick here. Should have saved this for a while and sold it to Neil Wyatt as an advent calendar puzzle for the December issue of the magazine.🥴

[beeza650Participant @beeza650]

l
