[Turbine GuyParticipant @turbineguy]

I'm very interested in steam turbines and steam engines. I have extensive experience with steam turbines (see profile). I made a model steam turbine of my design and tested it's performance. It was an easy test setup since there was a propeller available that gave the power at the maximum speed the model turbine was able to turn it. Also I sized the turbine nozzle to flow the maximum steam my boiler could produce with the pressure just below the maximum. I would like to make a similar test with a model steam engines and would appreciate and suggestions on making a test setup.

[Turbine GuyParticipant @turbineguy]

[Thor 🇳🇴Participant @thor]

Welcome to the forum. Any chance of a photo of your steam turbine?

Thor

[Chris Evans 6Participant @chrisevans6]

Welcome along, your project sounds very interesting.

[Brian HParticipant @brianh50089]

Welcome Turbine Guy. I too would like more info.

If you have any questions, someone on here is bound to have an answer ('though it might not be the correct one!)

Brian

[Neil WyattModerator @neilwyatt]

Welcome to the Forum Turbine Guy!

Recent issues of Model Engineer have been carrying some very interesting theory on steam turbines.

Neil

[Turbine GuyParticipant @turbineguy]

Thanks all of you for welcoming me.

Thor, I tried copying and pasting my pictures into this box. When I first tried pasting the picture a security box came up and I tried pasting the picture into the security box but nothing showed when I tried. I then copied the pictures into a Word file and tried copying and pasting the Word file. Same result. Since nothing showed when I tried pasting I don't know if anything was received. I guess somebody will need to walk me through this process.

Brian, let me know what additional information you would like. I have drawings of the turbine, an Excel file that I used to calculate the performance, and the test results. It is a very simple turbine never intended to be high performance. My initial goal was to design something simple enough that I could make it. My real interest was seeing how close the real performance was to my calculations.

Neil, I would like to read the recent turbine articles and will look at getting the Model Engineer and some back issues.

Byron

[Michael GilliganParticipant @michaelgilligan61133]

Byron

Here is the essential reading: **LINK**

https://www.model-engineer.co.uk/forums/postings.asp?th=103028&p=1

… I look forward to seeing your photos !!

MichaelG.

[Thor 🇳🇴Participant @thor]

Hi Byron,

Thanks for the photos, Michael's link will explain how to post your photos in your post, I viewed them in your album. Do you have any photos of the "innards" of your turbines.

Thor

Edited By Thor on 30/08/2018 18:21:32

[Turbine GuyParticipant @turbineguy]

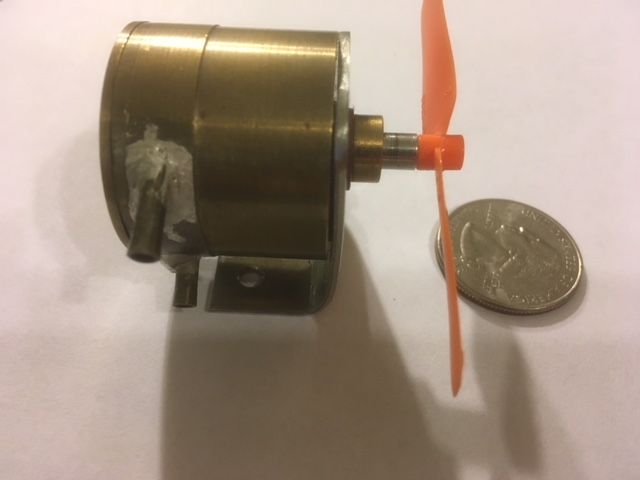

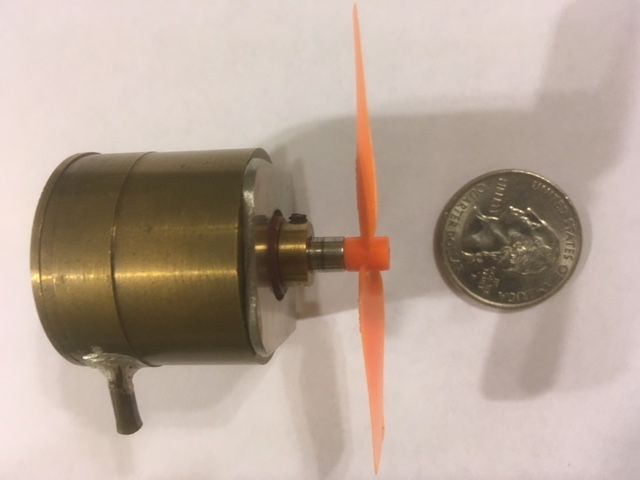

Thanks MichaelG, I followed your instructions and these are my turbine photos. You all will notice Photos aren't my strong suit.

[Turbine GuyParticipant @turbineguy]

Hi Thor,

I just took the photos and don't have any of the inside parts. I would take the turbine apart except that the propeller is a press fit on the shaft. If I separate the propeller, I might loose the press fit. Is there a format I can send drawings in? My drawings are PDF files. If I can't send the drawings, I'll open the turbine up and make some more photos. The worst case is I would have to get a new propeller and they are not very expensive.

Byron

[Thor 🇳🇴Participant @thor]

Hi Byron,

Thanks for posting the photos. PDF's are not accepted by the forum software, only JPG's. I will send you a message.

Thor

[Neil WyattModerator @neilwyatt]

Hi Byron,

That's a neat little power unit.

In Adobe Acrobat Viewer you shoudl have a 'camera' icon, you can use this to take a 'picture' of a diagram or photo in a PDF and paste it inmto an imaging program like Paint and save it as a photo.

A bit long-winded but better than ruining a decent prop!

Neil;

[Harry WilkesParticipant @harrywilkes58467]

Hi TG

Welcome to the forum, cant help much with your model turbine nearest Ive come to one was driving a 12 MW gen set

H
