What size gear cutter for gear

[Michael GilliganParticipant @michaelgilligan61133]

Classy work, as always, David

A few notes on feeds & speeds would be helpful.

MichaelG.

[David George 1Participant @davidgeorge1]

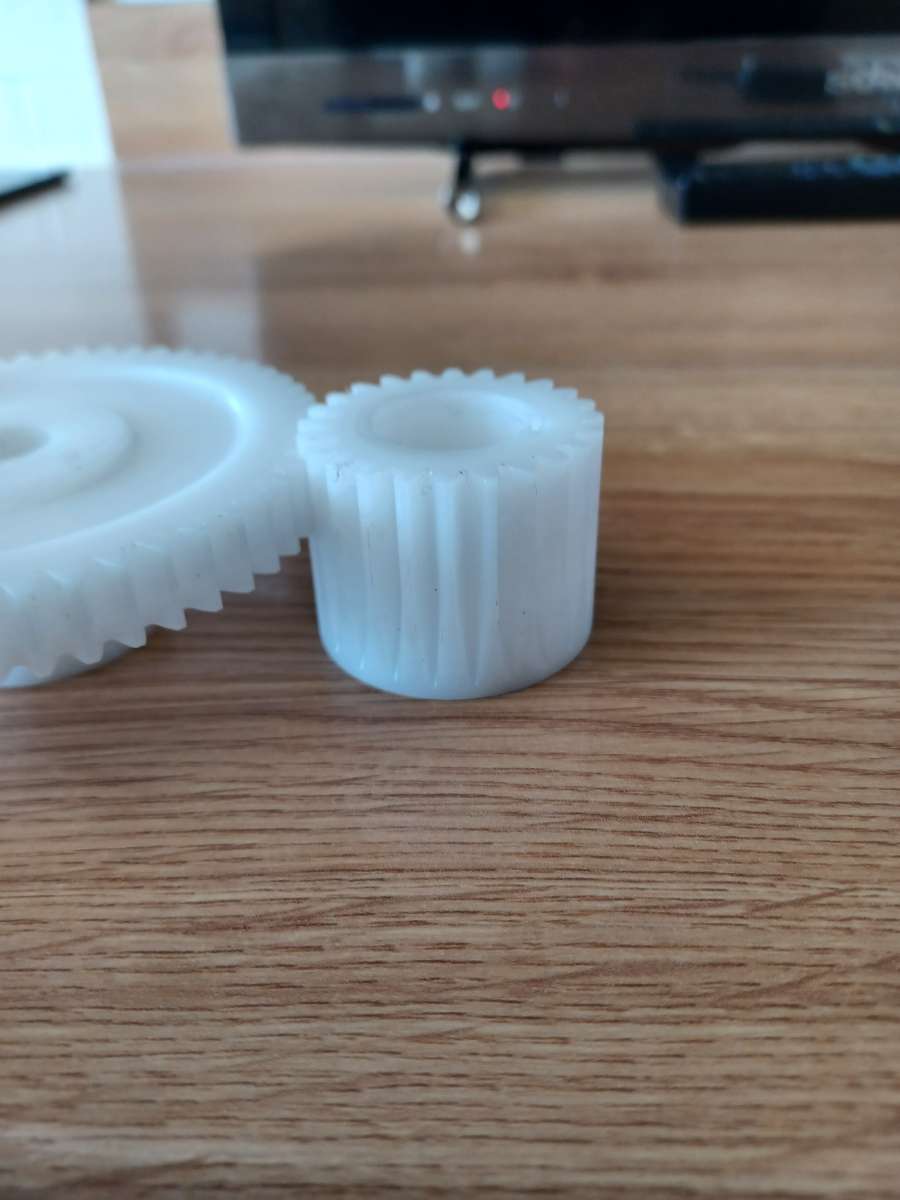

I cut the Delrin at 450 rpm and just cut with one cut in to depth by hand a slow feed. The smaller gear was wound in length whilst the full depth on centre line 13mm length and reverse as the gear was not cut full length.



David

[David George 1Participant @davidgeorge1]

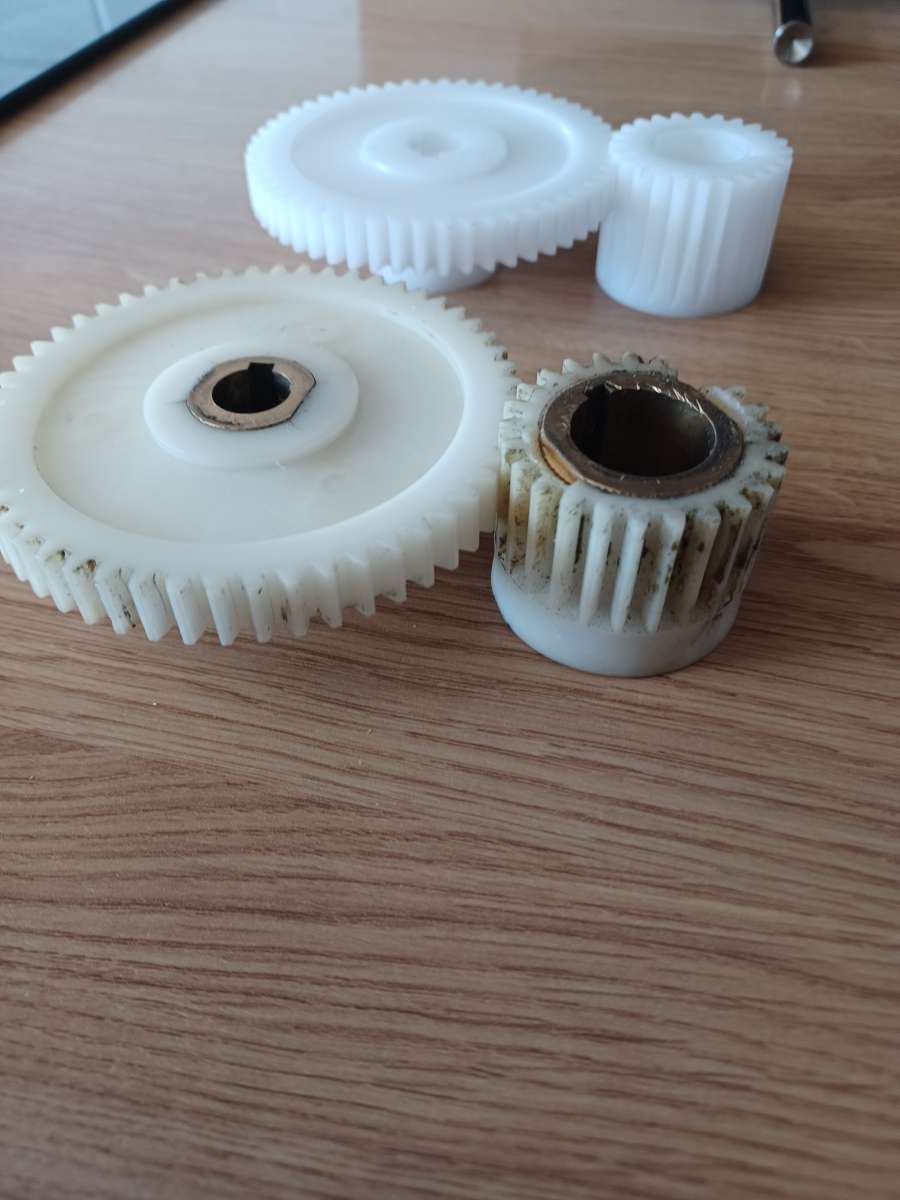

Picture of original gears.



David

[Michael GilliganParticipant @michaelgilligan61133]

Thanks for the useful notes, David

MichaelG.

[Pete RimmerParticipant @peterimmer30576]

Very clean looking gears nice work!

[bernard towersParticipant @bernardtowers37738]

They turned out nice!

[David George 1Participant @davidgeorge1]

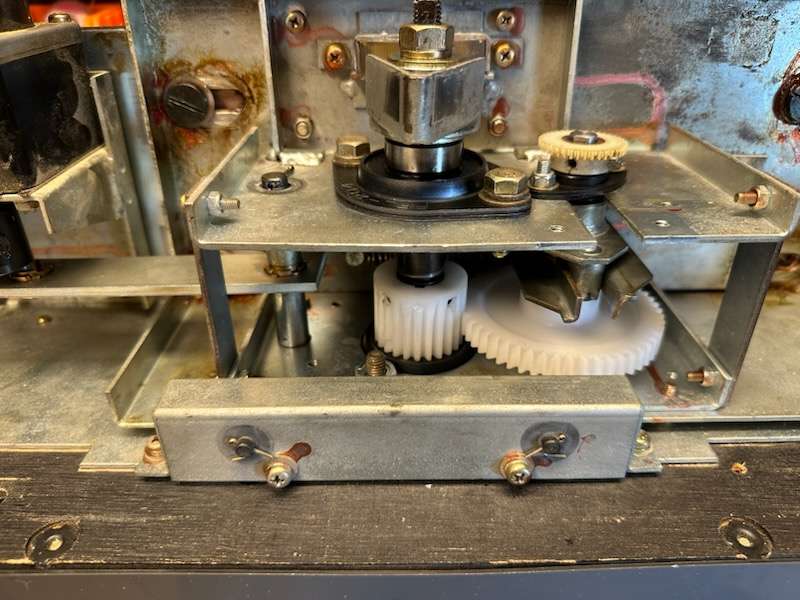

Whilst on Holiday in Jersey I received this picture of gears assembled in the mechanism.



No problems. No backlash

Job done and thanks for help with cutter selection.

David
