SAE 45deg Flared Fitting

SAE 45deg Flared Fitting

This topic has 4 replies, 3 voices, and was last updated 18 August 2018 at 23:06 by Paul Lousick.

Viewing 5 posts - 1 through 5 (of 5 total)

Author

Posts
18 August 2018 at 11:56 #367900
Paul Lousick
Participant
@paullousick59116

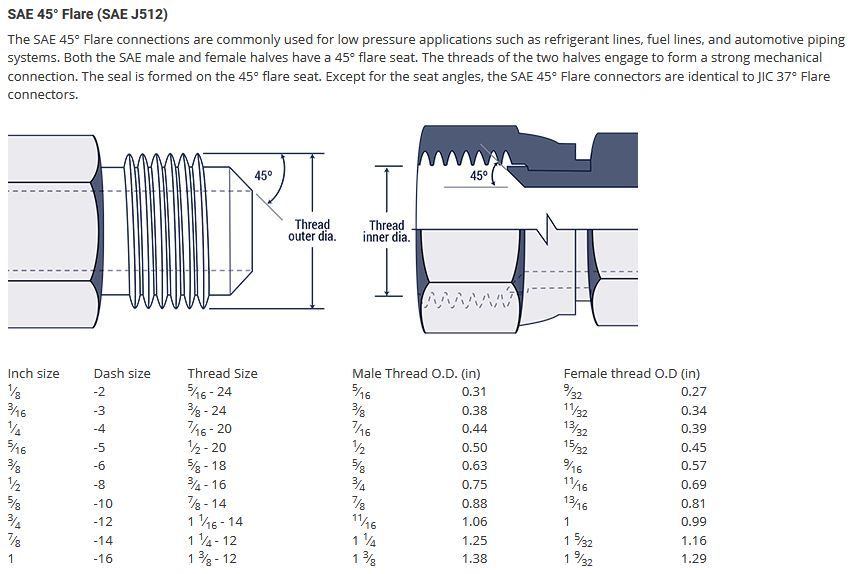

Can anyone please point me in the right direction for the machining dimensions of SAE 45 degree flared fittings used on copper tube. Dimensions for flared end, thread profile and dimensions for the female nut used on the tube.

Paul.
Advert

18 August 2018 at 11:56 #26142
Paul Lousick
Participant
@paullousick59116
SAE 45deg Flared Fitting
18 August 2018 at 14:19 #367912
Speedy Builder5
Participant
@speedybuilder5
**LINK**

You can even download their comprehensive pipe and hydraulic pipe thread guide, but remember to save it as it is not auto saved to disc.
18 August 2018 at 14:28 #367914
Journeyman
Participant
@journeyman
Fitting sizes for SAE 45:-

***LINK***

John
18 August 2018 at 23:06 #367963
Paul Lousick
Participant
@paullousick59116
Thanks Gentlemen, Just what I was looking for.

Paul
