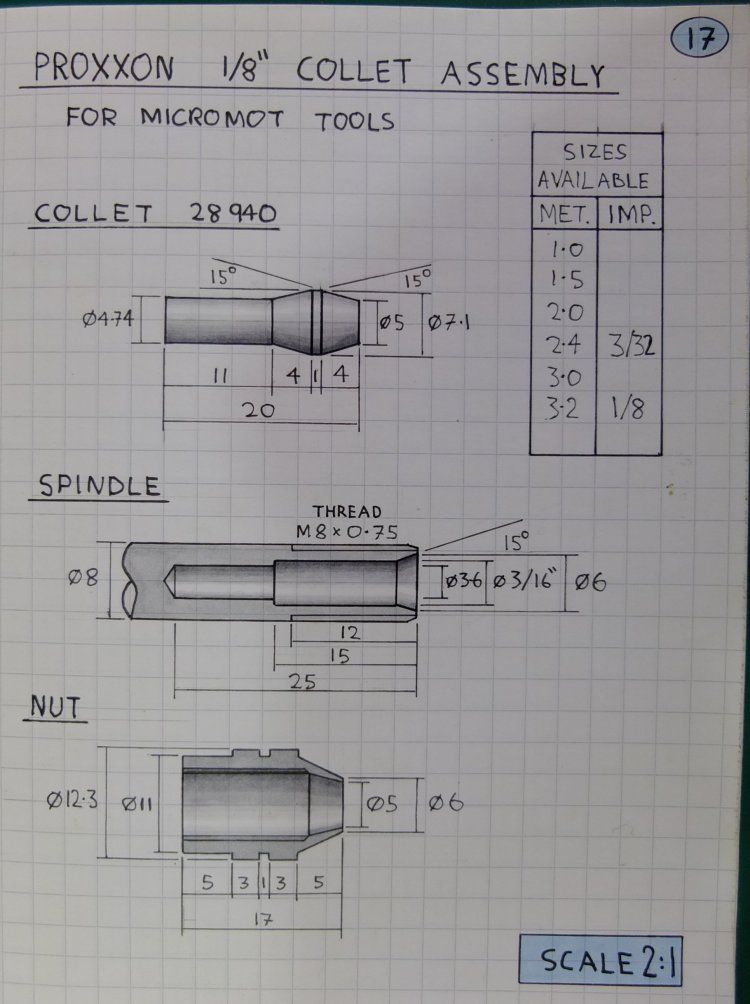

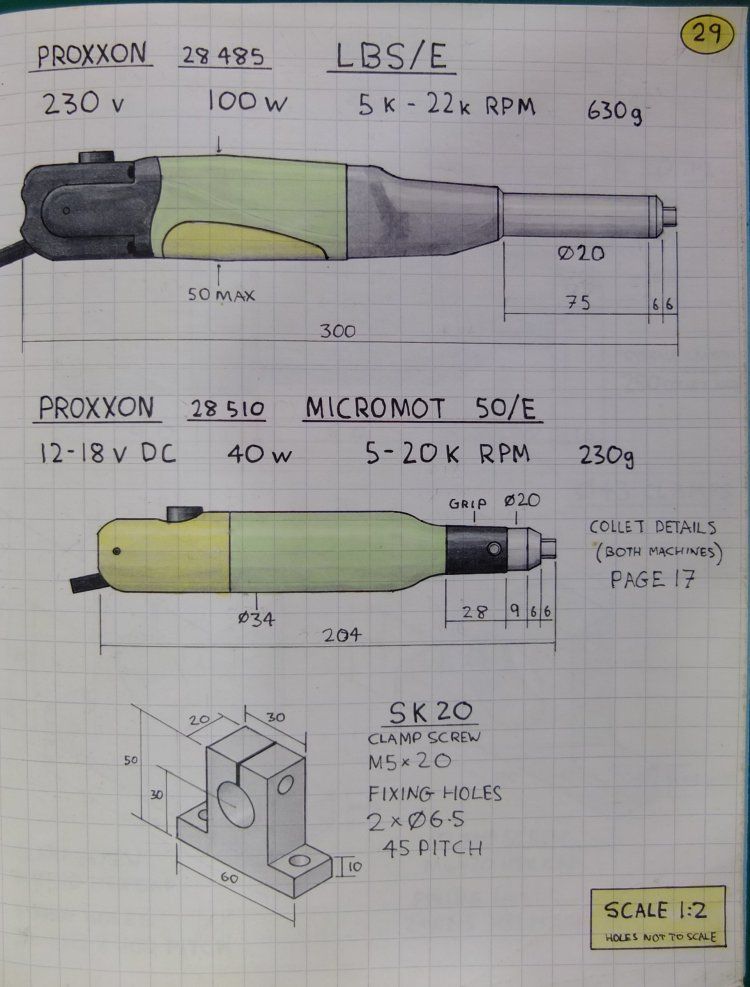

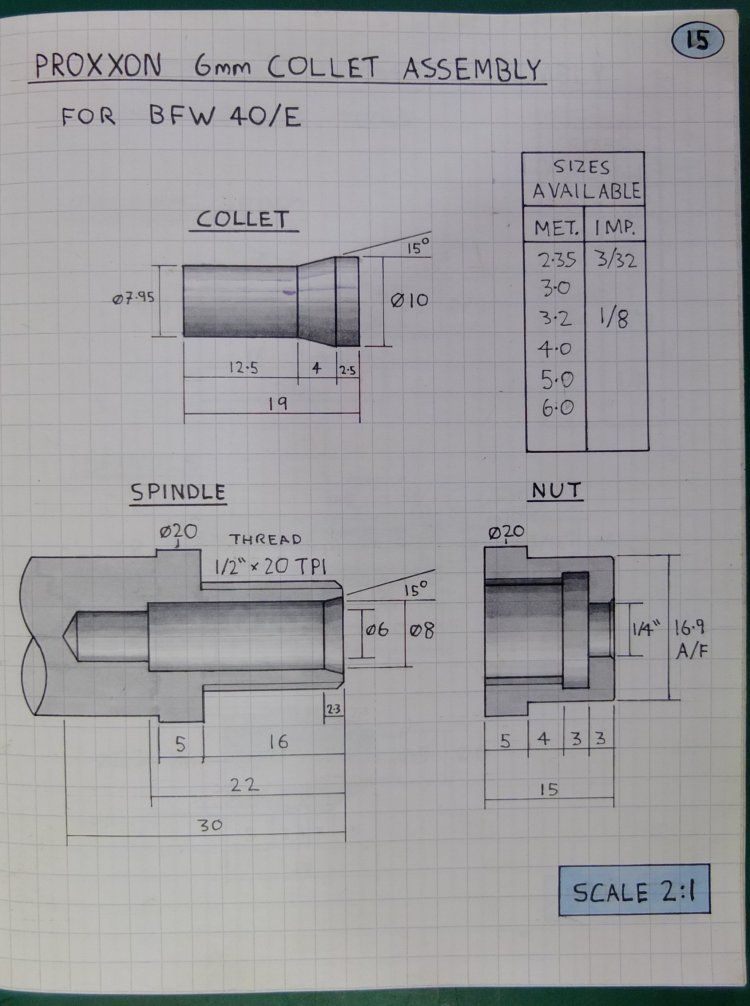

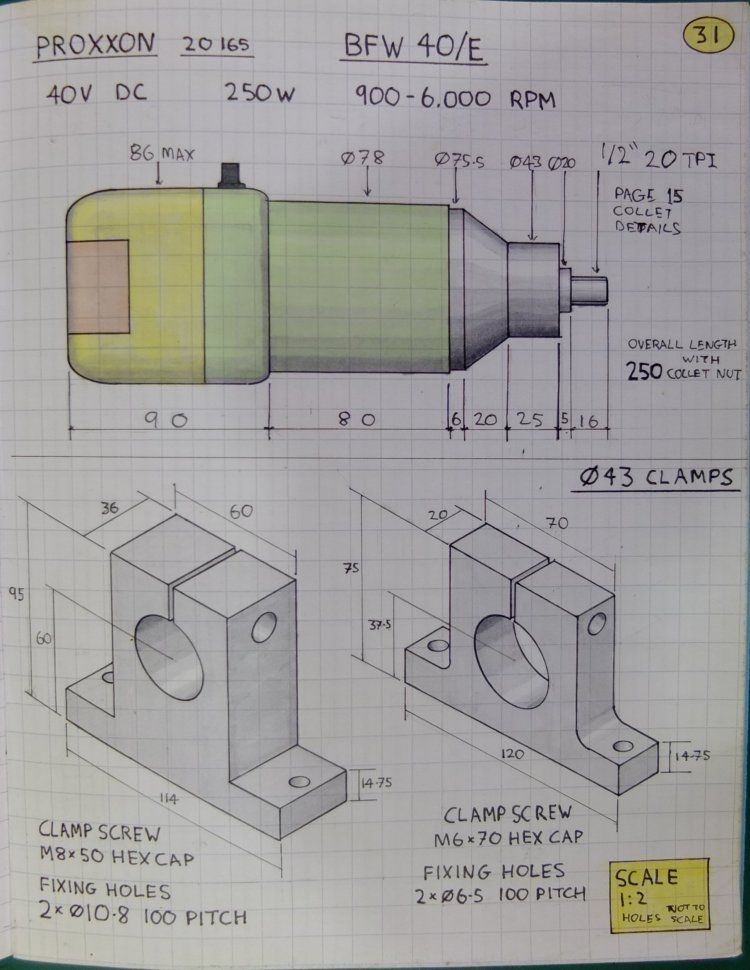

I use 3 Proxxon spindle machines, the small ones as a Dremel and the larger to drive other tools via pulleys.

To help me make attachments for them, I've jotted down their vital statistics.

I'll share them here as they might be of help to someone.

Steve
Advert

26 February 2020 at 17:37 #19639
Steve Crow
Participant
@stevecrow46066
26 February 2020 at 22:34 #454443
Bob n About
Participant
@bobnabout
Lovely drawings, I do hope you post more.
26 February 2020 at 22:57 #454444
Michael Gilligan
Participant
@michaelgilligan61133
Posted by Joules on 26/02/2020 22:34:26:

Lovely drawings, I do hope you post more.

.

+1 for that

MichaelG.
27 February 2020 at 08:23 #454457
Harry Wilkes
Participant
@harrywilkes58467
+3 for that
27 February 2020 at 08:46 #454458
Emgee
Participant
@emgee
+ 4 for the information provided.

Emgee
27 February 2020 at 10:01 #454466
KWIL
Participant
@kwil
Properly drawn, not by CAD.
27 February 2020 at 17:36 #454513
Steve Crow
Participant
@stevecrow46066

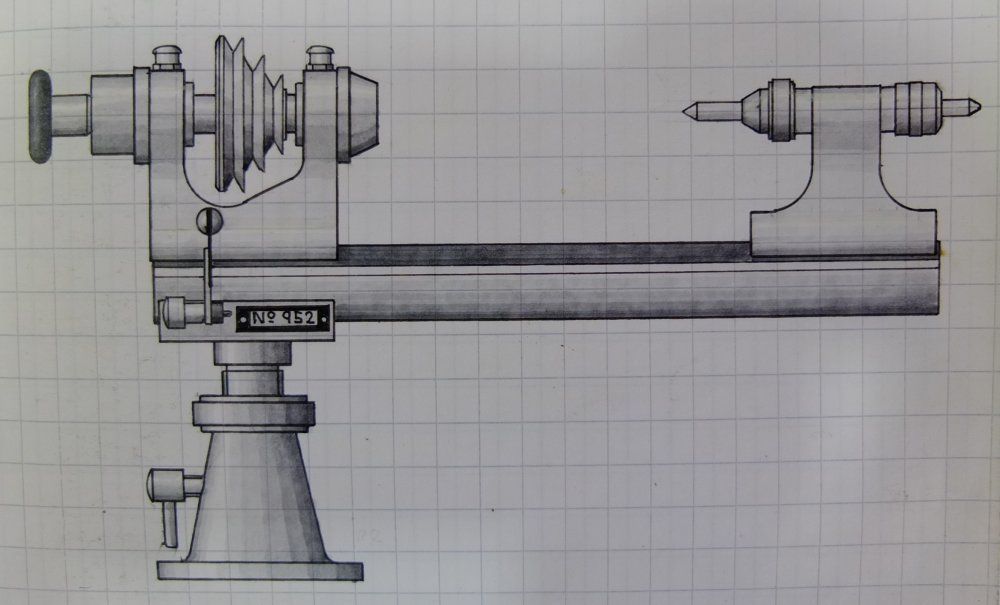

A couple more drawings. A Champion No1 bench drill and an IME watchmakers lathe, both driven by the big Proxxon.

I have not dimensioned these but they are both drawn to half scale on 5mm squared paper, so each square represents 10mm.

Steve
