Reverting A Section To Full View? (Alibre Atom)

[Nigel Graham 2Participant @nigelgraham2]

I modelled a part then cut it using that “Precise Section” Tool.

Only now, I want to bring it back to to full width. Not in the same session when the reverse arrow might work, but much later.

I want to revert a copy to keep the sectioned view.

Only….

How, please?

Is it even possible? Or has the sectioning deleted the material rather than simply made it transparent?

I’ve searched the manual but that doesn’t seem to mention any such facility.

[Mark EasingwoodParticipant @markeasingwood33578]

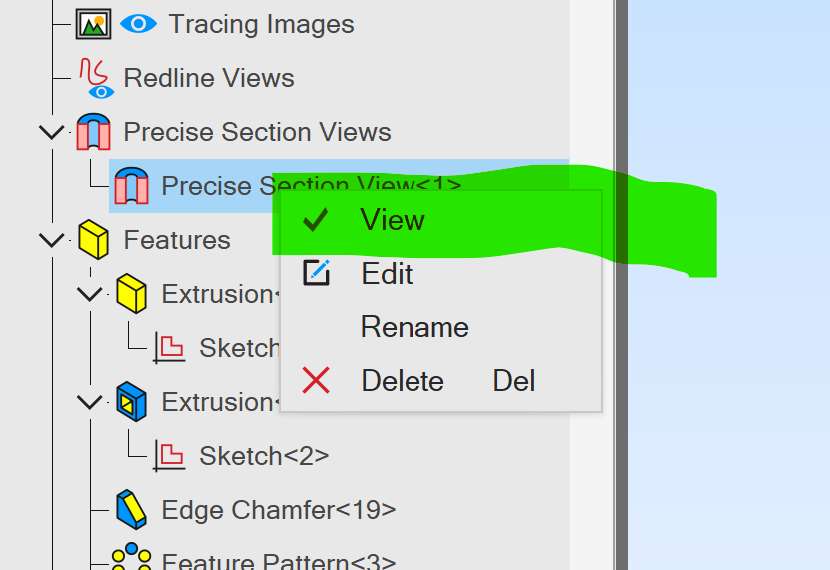

If I have understood your question correctly.  Right click on “Precise section View<1>” and left click on “View” to turn the section on/off as required.

[JasonBModerator @jasonb]

As Paul says you just untick “View”

It is possible to have several section sof a single part or an assembly and you can click between all of them and a solid part.

[Nigel Graham 2Participant @nigelgraham2]

Thankyou!

Mark –

Yes, you had understood what I asked. Found it and rebuilt the part. I’d been afraid sectioning the object actually deletes half of it.



Jason

I discovered that multiple choice in the manual but I am not sure it is in the Atom editions. I know some tools are only in the higher-rated versions.

[David JuppParticipant @davidjupp51506]

Yes, you can define multiple precise section views in Atom3D.

[Nigel Graham 2Participant @nigelgraham2]

Thankyou – not sure if I’ll ever need to but it’s useful to know it’s there.
