can any one help me identify this model

[Jeff SwinburnParticipant @jeffswinburn66016]

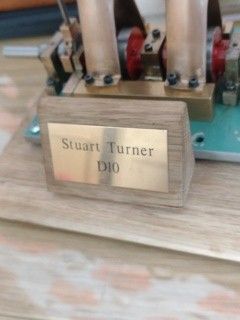

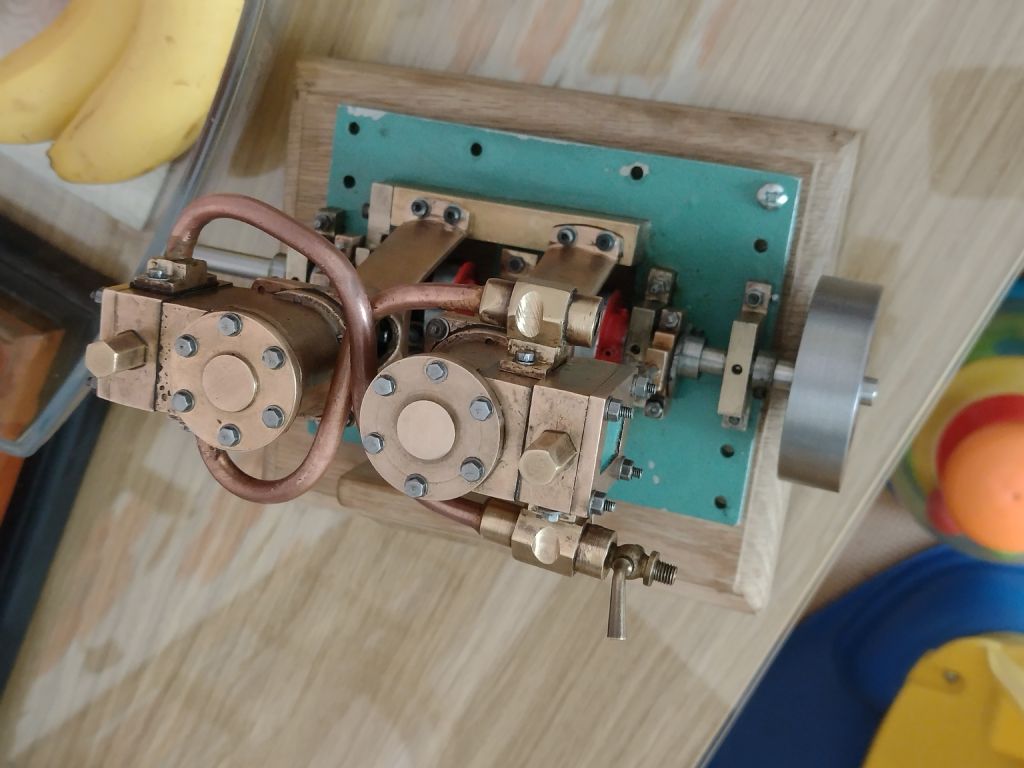

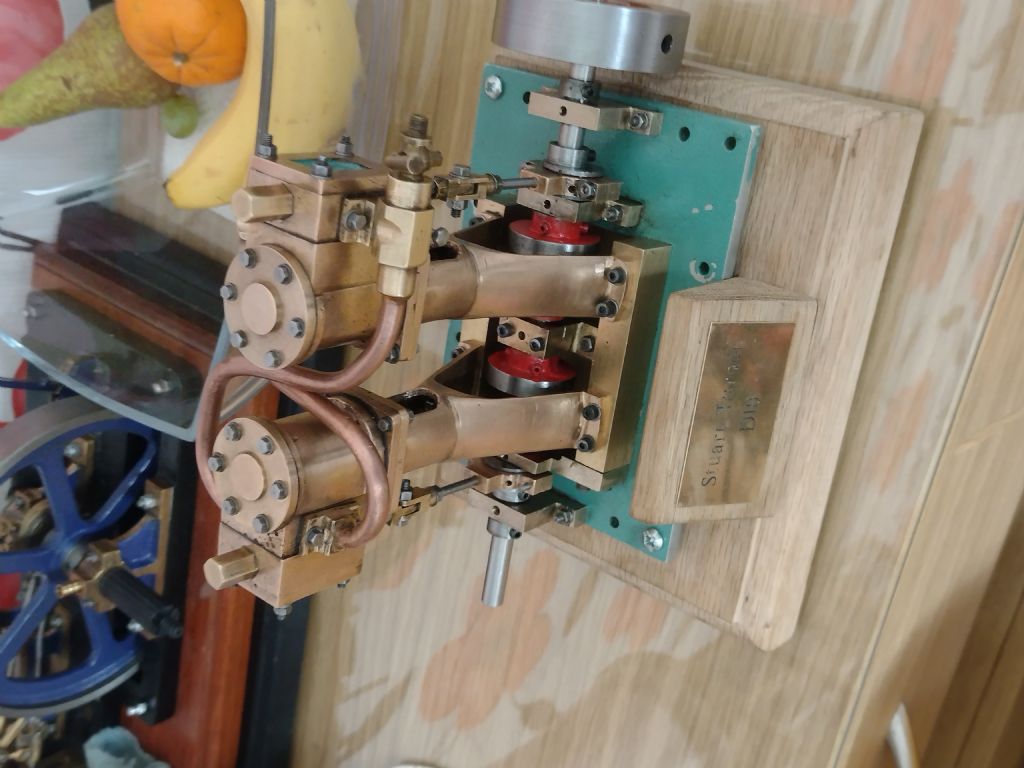

Hi have just got a steam model D 10 , all casings are bronze the disk wheel is steel the bed plate is ally and brass fabricated .
the bore is 3/14in the stroke is 3/14in
I can not find any information on the inter net , the only picture's I nan fined are the one I got of eBay ,and the same one on
a sale room site . Stuart turner site said it is not one of there models

Edited By JasonB on 17/05/2023 10:19:09

[Jeff SwinburnParticipant @jeffswinburn66016]

it is not D10

[JasonBModerator @jasonb]

I don't think there are any castings in that model, looks like it was scratch built and based around the Stuart D10 design

[Jeff SwinburnParticipant @jeffswinburn66016]

Hi thanks for your reply , I did see a set of castings in the Stuart tuner catalog 1924 was called

s v .slide valve vertical. all the castings where gun metal and the flywheel was steel.

[CirclipParticipant @circlip]

Have a look at old 'Reeves' designs, Cylinder base castings look a bit like 'Warrior'

Regards Ian.

[noel shelleyParticipant @noelshelley55608]

Not a D10 ! bore and stroke about right and the top cylinder covers look ok but the rest ? Looks a nice model. Noel

[JasonBModerator @jasonb]

It's not done with the Progress SV castings as they are only 1/2" bore, You can also see a joint line where the valve block is fitted to the curved cylinder and the shape of the A frames is arrived at by turning. Only thing SV and warrior about it is the use of square flanges at the top of the A frame to cylinder joint.

Not sure what base castings Ian can see by looks all bar stock to me, two rectangular rails onto a bit of plate

Edited By JasonB on 17/05/2023 10:22:19

[Jeff SwinburnParticipant @jeffswinburn66016]

Hi thanks I have had a look at reeves Worrior it looks like its the same will take some measurements

thanks Ian

Will let you know later when get in work shop

thanks Jeff.

[CirclipParticipant @circlip]

CYLINDER base Jason?

Regards Ian.

[JasonBModerator @jasonb]

[Jeff SwinburnParticipant @jeffswinburn66016]

Hi I have had a little look at the reeves Worrior . a lot of the measurements are the same but the bed plate is

fabricated , I have made a new crank has the old one was beyond respire. the warrior had a 5/8 " stroke and 3/4

bore the new crank I made is 3/4 stroke and 3/4 bore . but it runs ok on very little air ,

I will up load video when I have done some more bits to it .

thanks Jeff

[Roderick JenkinsParticipant @roderickjenkins93242]

Those standards are pretty distinctive

**LINK**

[Jeff SwinburnParticipant @jeffswinburn66016]

Hi I think the model is made from reeves castings with a scratch built bed plate ,

thank you all for your help on identifying the model , I can now get on with making it look better

thanks again Jeff
