wiring diagram wanted

[Malcolm BeggParticipant @malcolmbegg82759]

I have a Powercraft welder which had the rotary switch jammed, I took the switch apart and got it freed,however as you know when you take these switches apart the springs etc jump out,I got it all together no problem,however I do not have any idea as to which rotation the cams go, what I would like to know if someone has one of these switches ,is the connection between each contact for each part of the rotary switch,if I get this I was going to do a you tube video on taking it apart and putting it back together as I don't think their is one showing the different parts inside the switch.

Thanks

[Malcolm BeggParticipant @malcolmbegg82759]

powercraft 3648 25-130 no gas welder

[JohnFParticipant @johnf59703]

Bump, can't help but just bringing you back to the top!

[martin perman 1Participant @martinperman1]

Do the various contacts have either a numeric or alphabetic system, use a meter to check between for instance A-B or 1-2 etc, remembering to see if they are open or closed with the meter.

Martin P

[Malcolm BeggParticipant @malcolmbegg82759]

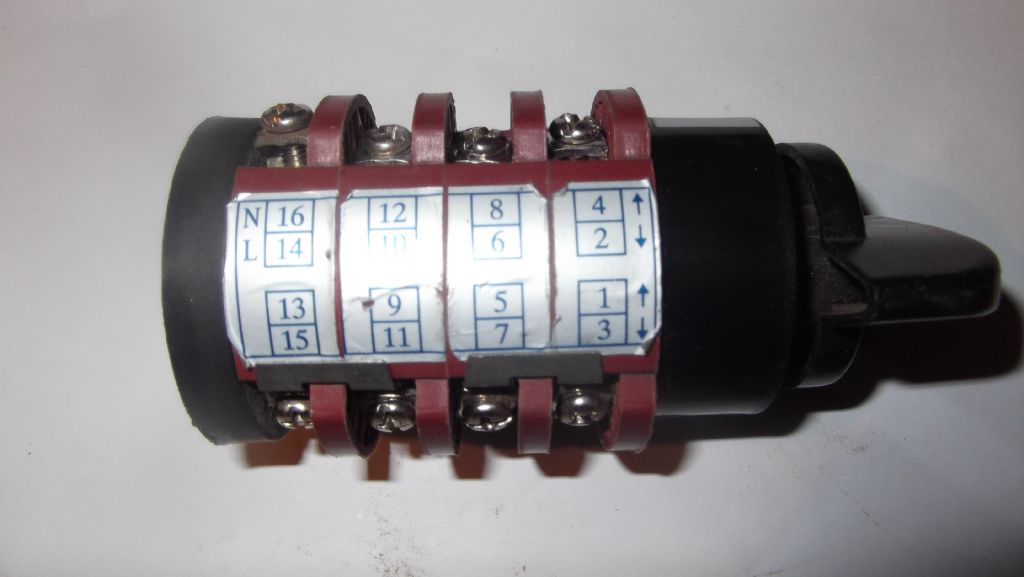

Please see attached photo of switch, what I would like to know is what connection goes to what number on the switch, the switch is numbered 0-6
