How to read paln

[JasonBModerator @jasonb]

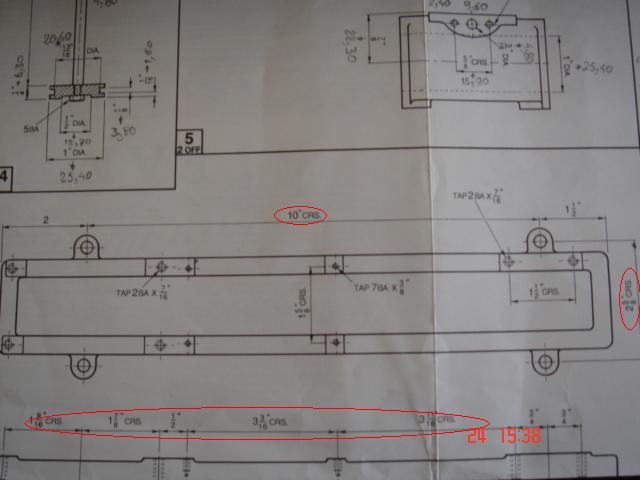

This is Armando’s drawing.



As I suggested the 10″ CRS refers to the distance between the centres of two holes



J

[Armando MenesesParticipant @armandomeneses27262]

Hello



What does it mean B.M.S. FAB.?

It is a frame STAY.



Armando

[JasonBModerator @jasonb]

Bright Mild Steel Fabrication. So it will be made from pieces of steel that are then silver soldered together.



J

Edited By JasonB on 29/09/2011 13:21:19

[JasonBModerator @jasonb]

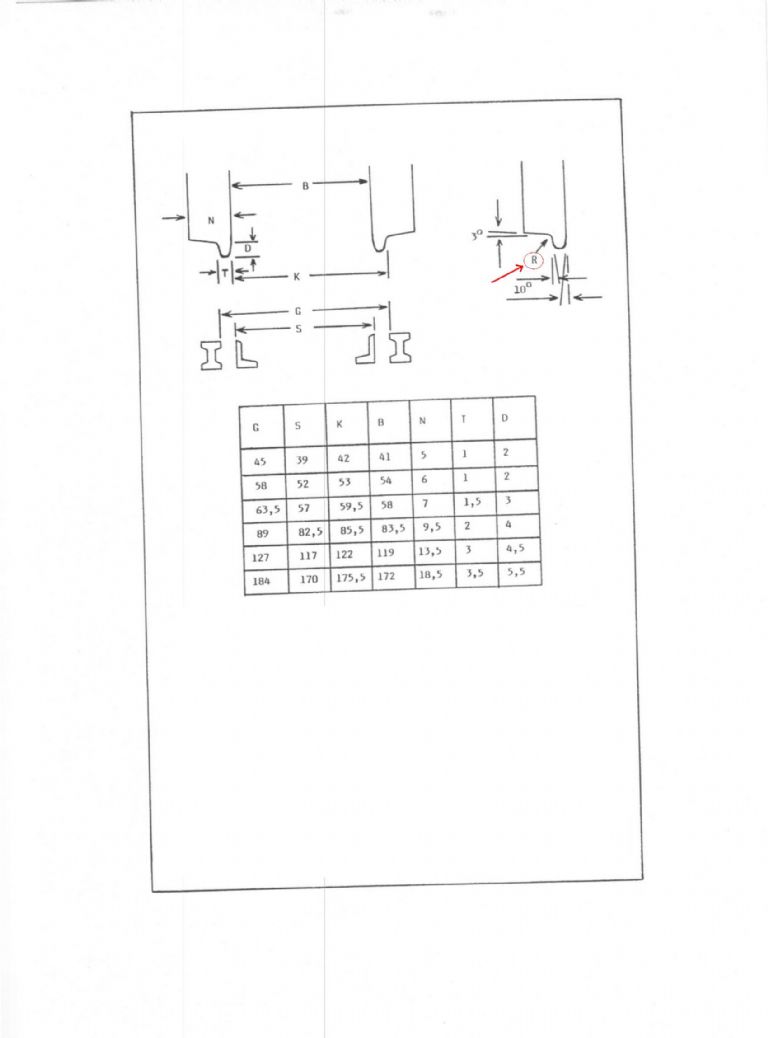

Armando also has a query on teh radius for these wheels, I’m not a loco man so perhaps someone else can help



J

[AndyPParticipant @andyp13730]

From The Model Engineer’s Handbook root radius for the relevant gauges is given as:-



Gauge RR

63.5 0.9

89 1.3

127 1.8

184 2.5



all dimensions in mm of course.



Andy
