  • #368703
    Phil Stevenson
    Participant
      @philstevenson54758

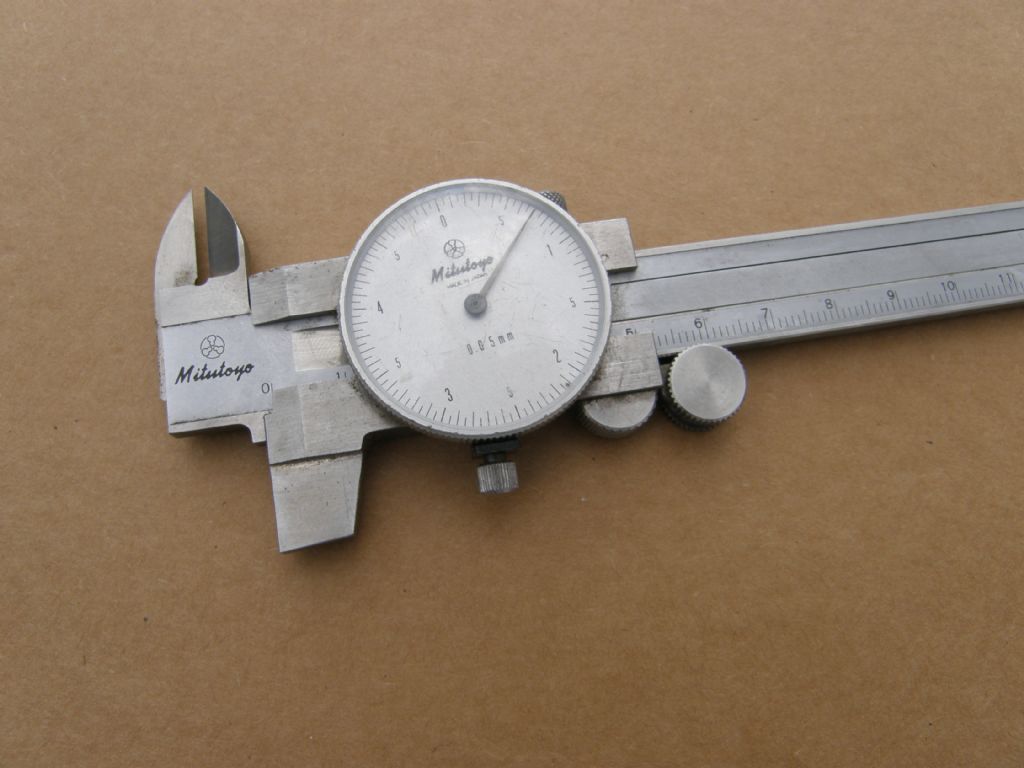

      I have acquired a job lot of assorted tooling, tat and mysterious objects and I'm hoping for some i/d assistance please. First of all, what is this? Marked Moore and Wright and I'm sure I've seen one before somewhere …p8230005.jpgSecondly, I also got a variety of vernier gauges among which is this Mitotoyo but I can't work out if this is something special or if a piece is missing to allow o/d measurement. There doesn't seem to be a way of zeroing for i/d either.p8230001.jpg


      Thanks as ever for any help.

      Advert
      #9305
      Phil Stevenson
      Participant
        @philstevenson54758
        #368706
        David Standing 1
        Participant
          @davidstanding1

          I can't see the edge of the blade, but the first one looks like a bearing scraper. But I cannot recall ever having seen one all in steel before, they are normally wooden handled.

          #368707
          Lambton
          Participant
            @lambton

            Phil,

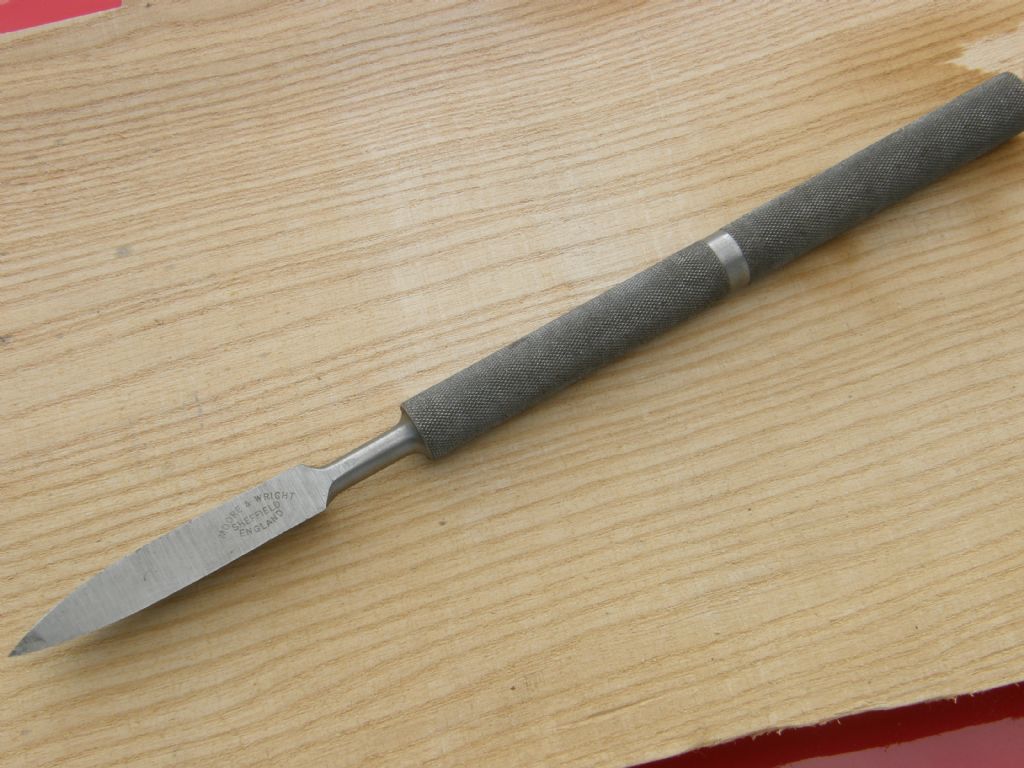

            The first item is a M&W triangular scraper which is part of a set of three small scrapers the others being a flat scraper and curved one. They are very desirable.

            Can't help with the Mitutoyo dial calliper but like you say it was probably a standard item modified for some special purpose.

            Eric

            #368710
            Phil Stevenson
            Participant
              @philstevenson54758
              Posted by David Standing 1 on 23/08/2018 17:28:21:

              I can't see the edge of the blade, but the first one looks like a bearing scraper. But I cannot recall ever having seen one all in steel before, they are normally wooden handled.

              Sorry David, not a good picture but it is triangular as Eric has just identified.

              Thank for your help.

              #368712
              Phil Stevenson
              Participant
                @philstevenson54758
                Posted by Lambton on 23/08/2018 17:28:57:

                Phil,

                The first item is a M&W triangular scraper which is part of a set of three small scrapers the others being a flat scraper and curved one. They are very desirable.

                Can't help with the Mitutoyo dial calliper but like you say it was probably a standard item modified for some special purpose.

                Eric

                Thanks Eric. Yes the Mitotoyo may well be a special mod. I think there is something printed on the back which may identify it as such. I'll try to get a picture up. So much to learn!

                #368716
                Michael Gilligan
                Participant
                  @michaelgilligan61133
                  Posted by Phil Stevenson on 23/08/2018 17:08:53:

                  … among which is this Mitotoyo but I can't work out if this is something special or if a piece is missing to allow o/d measurement. There doesn't seem to be a way of zeroing for i/d either.

                  .

                  As others have suggested, it looks to have been neatly modified, to serve for i/d and depth measurement only.

                  Zeroing is simple … loosen the knurled screw, rotate the dial, tighten the knurled screw.

                  MichaelG.

                  #368837
                  Phil Stevenson
                  Participant
                    @philstevenson54758
                    Posted by Michael Gilligan on 23/08/2018 18:14:57:

                    Posted by Phil Stevenson on 23/08/2018 17:08:53:

                    … among which is this Mitotoyo but I can't work out if this is something special or if a piece is missing to allow o/d measurement. There doesn't seem to be a way of zeroing for i/d either.

                    .

                    As others have suggested, it looks to have been neatly modified, to serve for i/d and depth measurement only.

                    Zeroing is simple … loosen the knurled screw, rotate the dial, tighten the knurled screw.

                    MichaelG.

                    Thanks Michael it definitely looks like the vernier has been modified. What's left of the left hand o/d shoulder is 2mm short of the i/d hand. Strange but it must have served a purpose. My question was really about where the measuring point for the i/d starts on the gauge. The only way I can see to do this is to use the depth gauge to fix a starting point. It will never be that accurate but will suffice for my woodworking efforts. If I get ambitious I may even try to make up a filler piece to bring the gauge back to it's original purpose.

                    #368864
                    chris stephens
                    Participant
                      @chrisstephens63393

                      Sorry to contradict you Micheal but to zero the dial you use the special tool (that bit of wire with a square bent at one end) that came with the caliper. Turning the dial is just for very minor alignment. I was only thinking about putting up a video on how to do it earlier this week as so many folks seem to not know how it is done.

                      #368872
                      Phil Stevenson
                      Participant
                        @philstevenson54758
                        Posted by chris stephens on 24/08/2018 13:32:09:

                        Sorry to contradict you Micheal but to zero the dial you use the special tool (that bit of wire with a square bent at one end) that came with the caliper. Turning the dial is just for very minor alignment. I was only thinking about putting up a video on how to do it earlier this week as so many folks seem to not know how it is done.

                        Yes Chris, you are right, this is not a standard dial vernier. This dial is for fine adjustment only. I'd be very interested in seeing your video!

                        Thanks all as ever.

                        #368879
                        Michael Gilligan
                        Participant
                          @michaelgilligan61133
                          Posted by chris stephens on 24/08/2018 13:32:09:

                          Sorry to contradict you Micheal but to zero the dial you use the special tool (that bit of wire with a square bent at one end) that came with the caliper. Turning the dial is just for very minor alignment. I was only thinking about putting up a video on how to do it earlier this week as so many folks seem to not know how it is done.

                          .

                          I look forward to seeing it, Chris

                          MichaelG.

                          .

                          Edit: I presume you must be refering to this 'special tool' Chris:

                          https://www.ebay.com/itm/381686022468

                          I bought my Mitutoyo dial caliper secondhand, about 30 years ago, and have never seen [or felt the need for] one of those in all this time … now I'm fascinated.

                          Edited By Michael Gilligan on 24/08/2018 16:59:57

                          #368886
                          Clive Hartland
                          Participant
                            @clivehartland94829

                            I have a complete set of the scraping tools, 3 square, flat and curved, a bit light but usable.

                            Clive

                            #368893
                            chris stephens
                            Participant
                              @chrisstephens63393

                              Holy crap, $20 with postage! This is another of those cases where if you have a need for one, caliper user and a clumsy bugger who keeps dropping things, guilty as charged, then you should be able to make your own for less than pennies.

                              I will video its use and post a link soon-ish, biggest delay will be damn slow whiffy connection.

                              #368898
                              jason udall
                              Participant
                                @jasonudall57142

                                If that dial caliper is an after market mod then it must be common…I have seen one with the same Adulteration…on inspection the finish appeared factory fresh on the cut off bits

                                #368902
                                Phil Stevenson
                                Participant
                                  @philstevenson54758
                                  Posted by jason udall on 24/08/2018 18:05:08:
                                  If that dial caliper is an after market mod then it must be common…I have seen one with the same Adulteration…on inspection the finish appeared factory fresh on the cut off bits

                                  The finish does indeed look factory fresh, but I still don't understand why the i/d is 2mm offset from the largely unuseable o/d. Maybe just for use as a depth gauge? Intriguing!

                                  #368906
                                  Michael Gilligan
                                  Participant
                                    @michaelgilligan61133

                                    Posted by Phil Stevenson on 24/08/2018 19:01:28:

                                    … but I still don't understand why the i/d is 2mm offset from the largely unuseable o/d.

                                    .

                                    I think that you will find the shape of the standard external jaws accounts for that.

                                    MichaelG.

                                    .

                                    https://goo.gl/images/iuCfdZ

                                    Edited By Michael Gilligan on 24/08/2018 19:47:53

                                    #368963
                                    mechman48
                                    Participant
                                      @mechman48

                                      https://goo.gl/images/iuCfdZ

                                      Had a look at the above link… interesting vernier calliper with two dials, looking at the write up, quite some age. I guess you have the choice of using metric or imperial, or for cross relating dimensions.

                                      George.

                                      #368985
                                      chris stephens
                                      Participant
                                        @chrisstephens63393

                                        As promised a video has been posted on youtube, the link is in a separate thread to allow easier searching for future readers, but just in case the link is here too

                                        #368987
                                        John Baron
                                        Participant
                                          @johnbaron31275

                                          Wow $20 for a straightened out paper clip.

                                          #368989
                                          chris stephens
                                          Participant
                                            @chrisstephens63393

                                            Clearly the seller has a great sense of humour! Mine is a short length of 0.9mm stainless wire not too carefully bent to a square at one end.

                                            #369028
                                            Michael Gilligan
                                            Participant
                                              @michaelgilligan61133

                                              Well done, Chris yes

                                              But I can honestly say I have never felt the need to do that … If mine has ever started to read badly wrong, it's always been because there is a tiny bit of brass swarf stuck in the rack: it's then time to remove the rack for a good clean.

                                              MichaelG.

                                              #369040
                                              chris stephens
                                              Participant
                                                @chrisstephens63393

                                                Thank you Michael we try. As long as one chap(ess) can learn from it, it was worth showing the world my grubby fingers.

                                                #369043
                                                Michael Gilligan
                                                Participant
                                                  @michaelgilligan61133
                                                  Posted by chris stephens on 25/08/2018 21:08:57:

                                                  Thank you Michael we try. As long as one chap(ess) can learn from it, it was worth showing the world my grubby fingers.

                                                  .

                                                  And we all got to chuckle knowingly, about the $20

                                                  … Good result yes

                                                  MichaelG.

                                                  #369050
                                                  chris stephens
                                                  Participant
                                                    @chrisstephens63393

                                                    indeed, and if there are any muggs, sorry, potential purchasers out there I will sell them one for half that.( UK only & TandCs apply)😂
