Conversion Chart

[Alan .204Participant @alan-204]

Simple question does any one know if they are available, I'm thinking of a poster sized one laminated if possible with metric to IMP conversion tap and drill size chart you know the sort of thing I mean.

Alan.

[Alan .204Participant @alan-204]

[John Stevenson 1Participant @johnstevenson1]

Yes free if you visit a Cromwell tool outlet.

A2 sized a bit 'plasticsised ', not actually laminated

They do two, decimal conversion with letter a,number and metric and a same sized tap die chart.

[Speedy Builder5Participant @speedybuilder5]

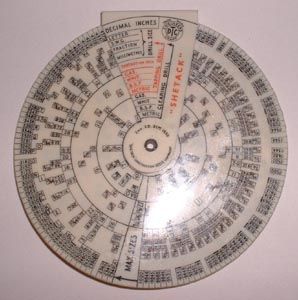

Not quite the same, but my main source of drill sizes from 0.0135" – 1.000" is the circular SHETACK calculator. Drill sizes in inches,metric,SWG,number and letter for BSW,BSF,Ba,Mertic (pitch not stated) and gas. Like nthe Lonjdon tube map, its MAGIC.

I have never see one, but does a metric version exist giving pitch as well ?

Bob

Edited By Speedy Builder5 on 23/03/2013 12:40:48

[John Stevenson 1Participant @johnstevenson1]

Doubt it Bob, they are a bit of a collectors item now.

Didn't realise how old they were, found one [ very faded ] on Ebay dated 1938.

I used to have one but never got on with it and might have thrown it out.

[BazyleParticipant @bazyle]

I have pinned up a yellowing "Model Engineer's Workshop Wallchart" which I think came with ME predating MEW. It has loads of tapping charts etc but also a list of numbered drills against their inch and metric eqivalents. Despite printing out spreadsheets of metric imp conversions I find this wallchart's presentation easier than being precise for most estimations.

I have an equivalent number drill list with some taping sizes against them from the back of someone's catalogue. (Tracy?)

Many of us may have picked up a year planner at Ally Pally paid for by advertising round the edge. It would be great if ME could resurrect the wallchart above and give them away at Sandown. Has to be popular with advertisers as unlike a year planner it would be garuanteed to be up in every model engineer''s shed until if fell apart.

[AJSParticipant @ajs]

Myford produce a wall chart which is quite comprehensive and available from several sources which a search will produce. It has a wipe clean surface.

Alan

[BazyleParticipant @bazyle]

Bob, please can you do a higer resolution picture of the disc thing, perhaps just the sector and a bit of the scale would do.

[David Clark 13Participant @davidclark13]

Hi There

Would there be any interest if I printed some A4 charts in MEW?

I am thinking that we could put four pages in the centre and you could photocopy them and hang them in the workshop or laminate them.

When they are worn out, you could photocopy them some more.

Any takers? I can plan them into issue 203 if there is enough interest.

regards David

Edited By David Clark 1 on 23/03/2013 21:27:28

[Keith LongParticipant @keithlong89920]

Hi David

That sounds like an excellent suggestion.

Keith

[SteambuffParticipant @steambuff]

Excellent Idea … Yes Please

Dave

[DMBParticipant @dmb]

Hi David,

Yes please!

Drills: letters / nos./ fractions / metric. Threads: BA / 32T / 40T / Brass26T / Gas / Metric(Fine or Fine and Coarse??) / BSF / BSW. I would think that first 4 listed most important for majority of Model Engineering needs. Main need is Tapping sizes and % depth of thread. Possibly also TPI of BA.

John

[FalcoParticipant @falco]

Lots of useful charts and info here:

http://www.metrication.com/engineering/threads.htm

http://mdmetric.com/thddata.htm#idx

[RobboParticipant @robbo]

Hi David,

That would be excellent. I have the larger sized ones that were given away with MEW in your early days as Editor, but find them a bit big for the wall so have to keep unfolding them, so they are falling apart at the seams!

Phil

[David HaynesParticipant @davidhaynes53962]

Thanks David for the suggestion, that would be a good idea to put that in – I subscribe to ME but not MEW.

Dave Haynes

[mickypeeParticipant @mickypee]

Great idea David, count me in.

Thanks

Mike

[Sub MandrelParticipant @submandrel]

Agreed that A4 we can encapsulate will be more handy than big wallcharts. I already have a few reference sheets hung ona nail – changewheel tables, BA and metric screw data.

Might reduce the wear on my 'Model Engineer's Handbook'!

Neil

[Speedy Builder5Participant @speedybuilder5]

I would like to see depth of thread dimensions as well, so that when you are screwcutting it would save all those calculations. Bob

[Speedy Builder5Participant @speedybuilder5]

BAZYLE – Please check your PMs for a reply to your request Thanks Bob

[Gray62Participant @gray62]

Hi David,

That would be a useful inclusion in the magazine, I subscribe to paper magazine but what about the digital only subscribers? As we all know, printing from the digital issues is a right PITA, how about a PDF for subscribers to download in addition or in place of the magazine pages.

Graeme

[SpringbokParticipant @springbok]

David
A Fantastic idea mine are all getting verry worn out, Conversion chart from Imperial to Dec, drilling charts, you name them. Thankyou think that will go down a bundle with everyone.
It would also help any new person starting up yes go for it

BUT I do not take MEW so how about including it in the forum or getting Dianne and team to take the idea on board!!!!
Bob.

Edited By Springbok on 24/03/2013 18:44:43

[David Clark 13Participant @davidclark13]

Hi Coal burner

I will do that.

Remind me when it is in the magazine and I will upload it for subscribers only.

regards David

[David Clark 13Participant @davidclark13]

Hi Springbok

As it will be for suscribers only, it would be available to me and mew readers.

regards David

[Sub MandrelParticipant @submandrel]

I second Bob's suggestion of including depth of thread.

Neil

[David HaynesParticipant @davidhaynes53962]

Hi David,

This idea of your seems to have been a winner. Just one thought, perhaps before you put ink to paper, you give a list of the items to be included. Not a finished format, just a paragraph that you copied from your proposed chart and 'paste special – unformated text' into a paragraph.

It would be a shame for something to be missed when there is such a forum of MEs.

David
