Merlin valve seat grinder and fuel injector lapping machine

[Nick Clarke 1Participant @nickclarke1]





Hi there

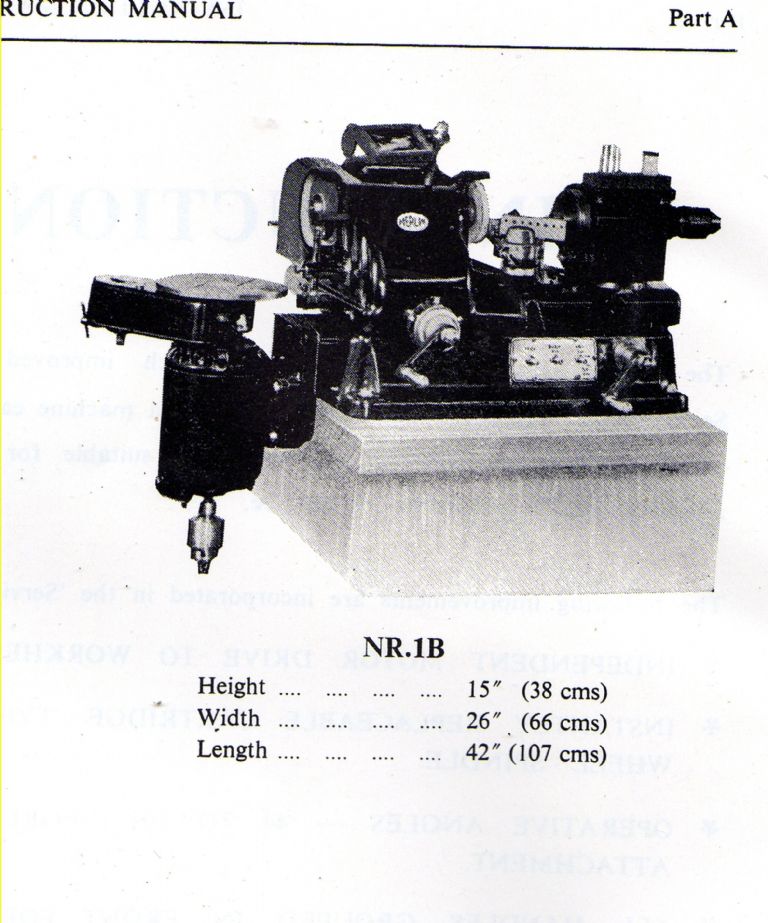

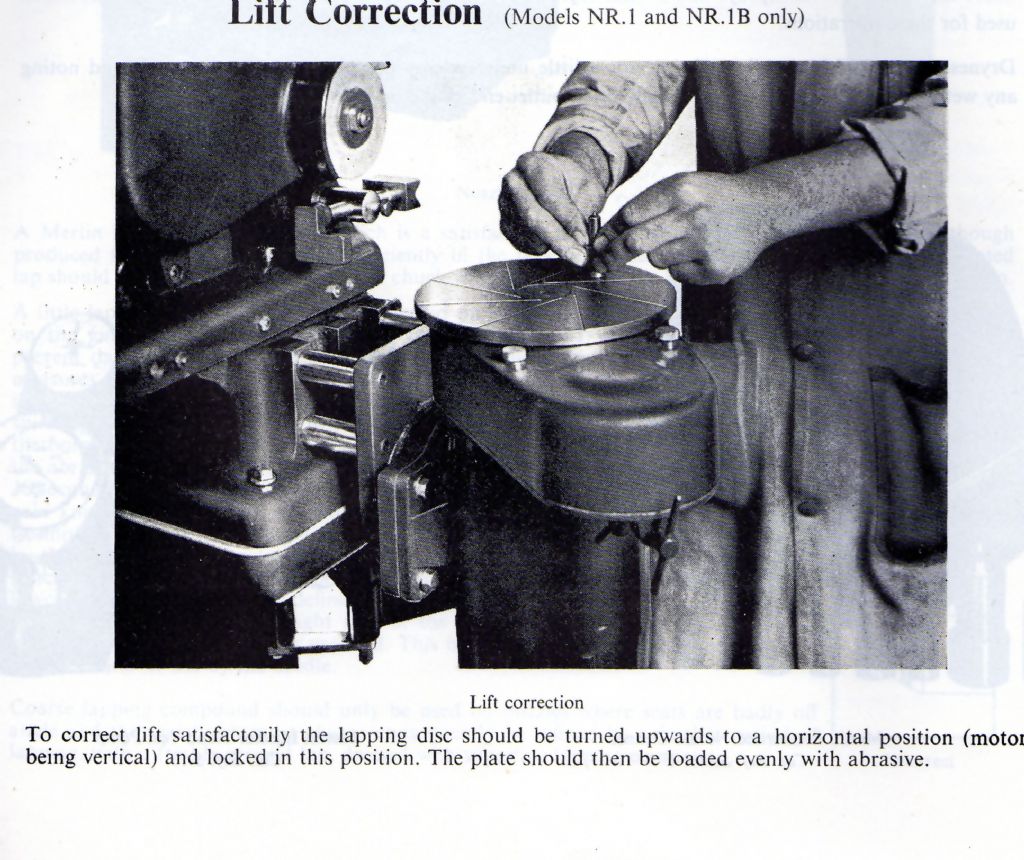

 Has anyone come across a machine like this before? (see photo) It has 3 crompton motors, 1 to drive the grinding head, 1 to drive the workhead and 1 to drive the lapping plate. The workhead on my example has 2 pratt burnard 5 inch scroll chucks mounted on it and swivrls on a mounting that is graduated in degrees. This assembly can bev moved longitudally along the bed via a leadscrew. the grinding head has 2 wheels (one on each end) and moves across the bed. It also has a coolant system supplied by a gearwheel type pump.

The machine is of 1970's vintage and is in perfect condition. I have a notion to convert it to another use, any ideas? the photos are scanned from the manual, I will post better ones when I get my camera fixed.

Edited By Katy Purvis on 01/06/2015 09:45:05

[Nick Clarke 1Participant @nickclarke1]

[CirclipParticipant @circlip]

Set up refurbing fuel injectors Nick, the price they charge for a “Replacement injector” makes it viable in these recessionary times. Last saw one used 45 years ago when we used to REPAIR  things.



  Regards  Ian.

[Nick Clarke 1Participant @nickclarke1]

Many thanks, however,I wouldn’t have a clue how to start, instruction manual a bit vague in
places.

[Keith LongParticipant @keithlong89920]

With the various drives and motions available to you I’d have thought you could have sharpened or made just about any cutters on it and given them a mirror finish to precise size on the lapping plate. Should also be able to do cylindrical grinding probably  small scale surface grinding as well.

[Nick Clarke 1Participant @nickclarke1]

Thanks for your suggestions, I shall have a go, as a relative newcomer to this hobby I will need to do some research into tool and cutter making

[Nick Clarke 1Participant @nickclarke1]

Thanks for your suggestions, I shall have a go, as a relative newcomer to this hobby I will need to do some research into tool and cutter making

[Nick Clarke 1Participant @nickclarke1]

Thanks for your suggestions, I shall have a go, as a relative newcomer to this hobby I will need to do some research into tool and cutter making

[David Clark 13Participant @davidclark13]

test

[David Clark 13Participant @davidclark13]

test

[Nick Clarke 1Participant @nickclarke1]

How do you remove posts? I dont know how 3 copys got there, althrough there was an error message at the time of posting

[Nick Clarke 1Participant @nickclarke1]

How do you remove posts? I dont know how 3 copys got there, althrough there was an error message at the time of posting. Just got the same error message.
