Wiring new Motor on Myford

[Toni van PoptaParticipant @tonivanpopta70528]

[Toni van PoptaParticipant @tonivanpopta70528]

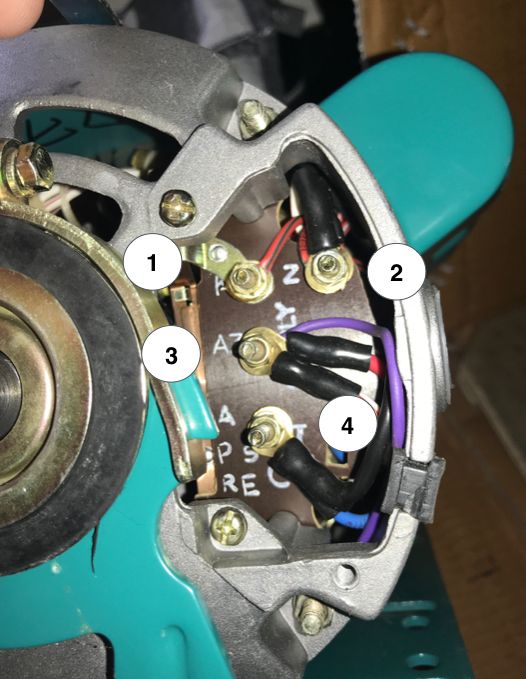

I just bought a new electric motor on which the wiring terminals are rather confusing to me. Clould someone point out to what are the A, AZ, Z and T terminals are? AZ and Z are rather obvious, I assume No. 4 is the T and 1 the A but I'd love to be shure before hooking it up.

[Harry WilkesParticipant @harrywilkes58467]

Hope this link is of help link

[duncan webster 1Participant @duncanwebster1]

If it is a capacitor start motor (that bulge at 2 o'clock suggests it is) then the run winding will have very high impedance measured with a normal meter, just the leakage across the capacitor

[David George 1Participant @davidgeorge1]

Hi a little more information would be helpful what make and model would make it easier to advise, perhaps a picture of the information plate on the motor. Sometimes there is information on the inside of the terminal cover plate.

David

Edited By David George 1 on 27/05/2019 08:31:28

[David George 1Participant @davidgeorge1]

Hi Toni to post a picture the information is on a forum web site FAQ if you look at top of page on the black stripe Forums tab. I hope this helps.

David

[Toni van PoptaParticipant @tonivanpopta70528]

Hello David, Tanks very much, but in the meantime i figured it out myself.

[SillyOldDufferModerator @sillyoldduffer]

Posted by Toni van Popta on 27/05/2019 09:39:31:

Hello David, Tanks very much, but in the meantime i figured it out myself.

Well done, the terminal labels on that motor are unusually confusing. If you don't mind saying, who made it?

Dave
