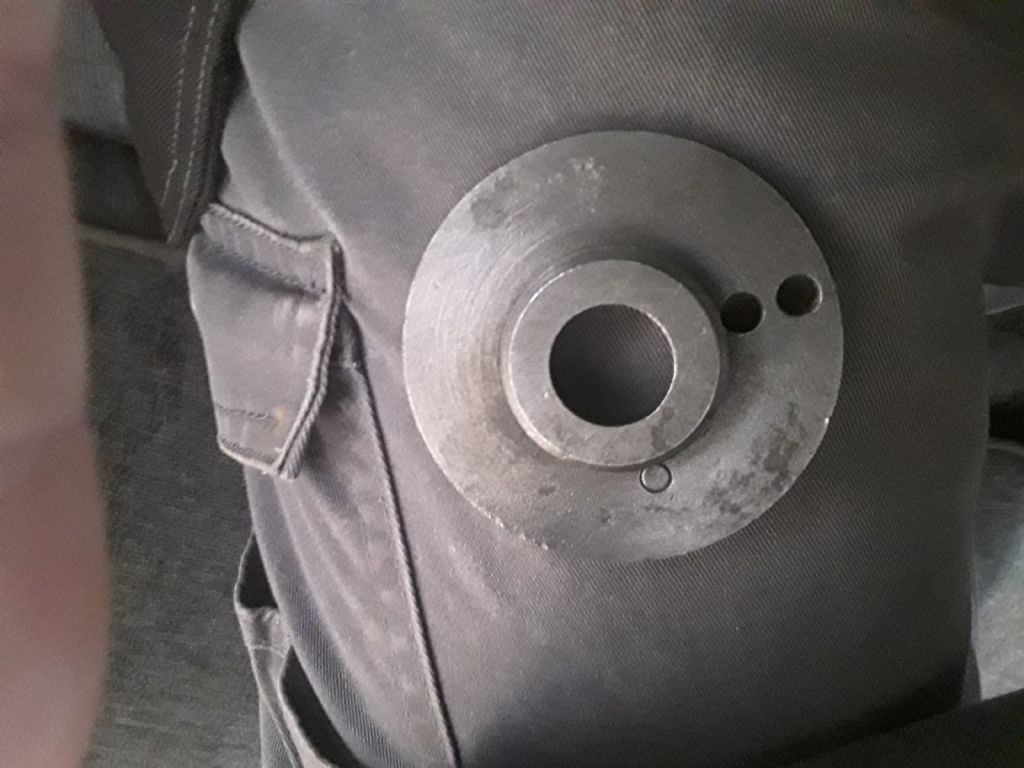

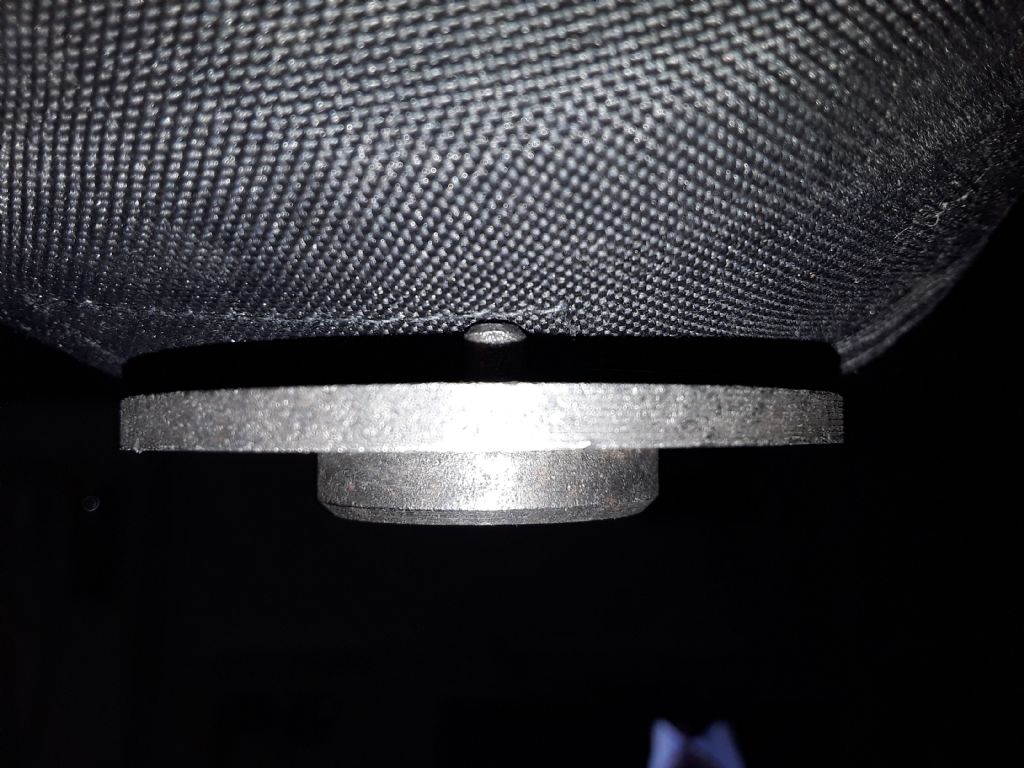

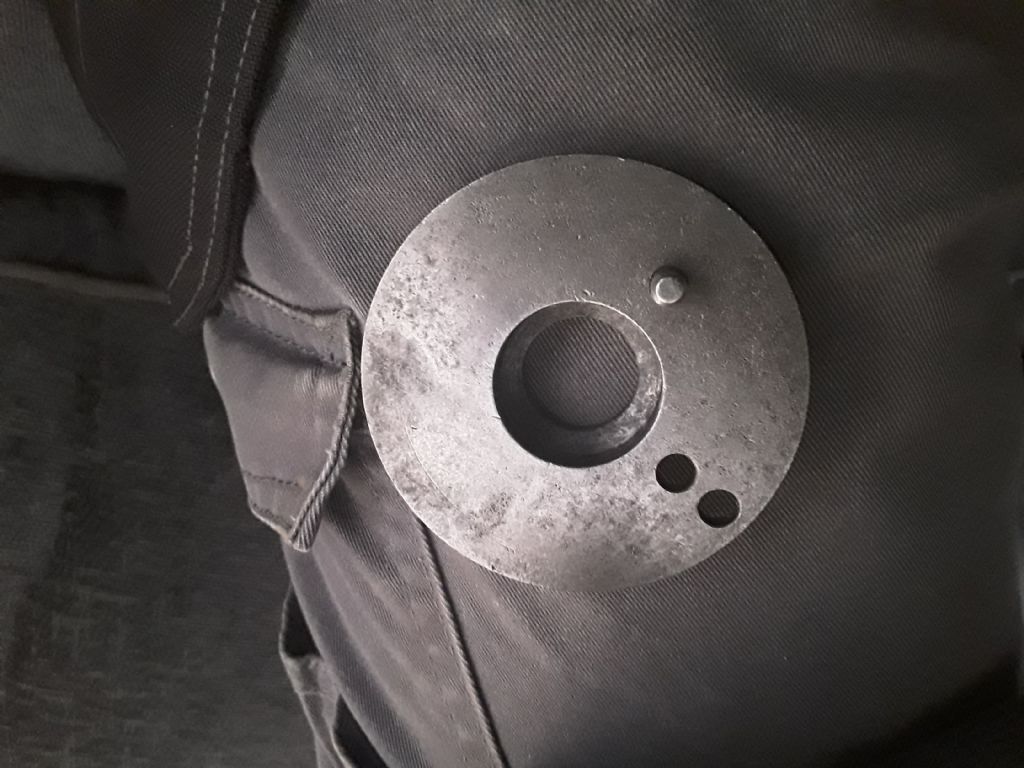

Hello all, just been cleaning my big box of lathe bits. I have a Boxford lathe and came across this. Can anyone tell me what it is?
17 April 2017 at 19:46 #293801
Martin Faulkner
Participant
@martinfaulkner67684
17 April 2017 at 19:47 #293802
Curtis Rutter
Participant
@curtisrutter61973
Looks like a chuck backplate to me
17 April 2017 at 19:51 #293803
Stuart Bridger
Participant
@stuartbridger82290
Catch plate for between centres turning?
17 April 2017 at 20:03 #293805
Martin Faulkner
Participant
@martinfaulkner67684
There are no threads in the middle so I ruled out a chuck plate unless there is some forms of bolt on method. All this is new to me. I was just working through the box of bits that came with it. I don't even know if it is for a lathe.

Catch plate? Is that the large round plate with the pin on the outer edge? This is only around 60mm diameter.
17 April 2017 at 20:44 #293813
Martin Faulkner
Participant
@martinfaulkner67684
If anyone can help. Think this should be in workshop and tooling Section? Tried to change it but can not find any options to do so.
17 April 2017 at 21:01 #293817
Martin Cargill
Participant
@martincargill50290
Blade flange for a woodworking saw? What is the bore size?

Edited By Martin Cargill on 17/04/2017 21:04:06
17 April 2017 at 21:23 #293819
daveb
Participant
@daveb17630
Man with a magnet stuck to his leg?
17 April 2017 at 22:14 #293822
Martin Faulkner
Participant
@martinfaulkner67684
Not sure on the blade flange, it's got 2 holes and a nipple. Can not see how it would hold a blade. It not my leg, it's the 10,000 tons of steel stuck in the fabric of the pants. Lol
18 April 2017 at 08:03 #293845
Martin Cargill
Participant
@martincargill50290
The reason I said blade flange is that some blades use drive pins to stop the blade from tightening and to stop them from spinning off during braking. I see a few of them that have a range of holes to work with different blade pin holes(it's easier to drill a flange than to drill a hole in a blade)
18 April 2017 at 21:12 #293969
Martin Faulkner
Participant
@martinfaulkner67684
Posted by Martin Cargill on 18/04/2017 08:03:39:

The reason I said blade flange is that some blades use drive pins to stop the blade from tightening and to stop them from spinning off during braking. I see a few of them that have a range of holes to work with different blade pin holes(it's easier to drill a flange than to drill a hole in a blade)

I do understand what your saying and have not ruled out your idea.

The center hole diameter is 11/16 or 17.6mm.
