Clutch for geared head lathes

[Bill CooperParticipant @billcooper62459]

Hi,

I have a Harrison M250 and will def. be making this clutch.

HOWEVER, is it me or are there some drawings missing??

Page 519 the pushrod housing is supposed to be Fig 8 – but it is the pivot mounting block and there are no dimensions for for the attachment plate.

Am I missing something??

Bill

[Bill CooperParticipant @billcooper62459]

[Diane CarneyModerator @dianecarney30678]

Bill

I have sent you an email.

Diane

[Gray62Participant @gray62]

Bill, Diane,

I thought the same, I'm planning on adapting the design for a Warco GH1330, so if there is any info missing from the article, could you let me know of publish them in the next issue.

Graeme

[Diane CarneyModerator @dianecarney30678]

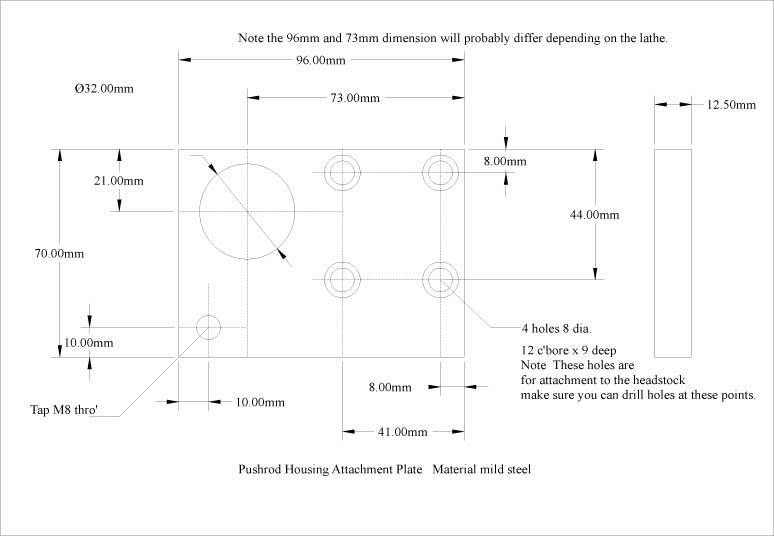

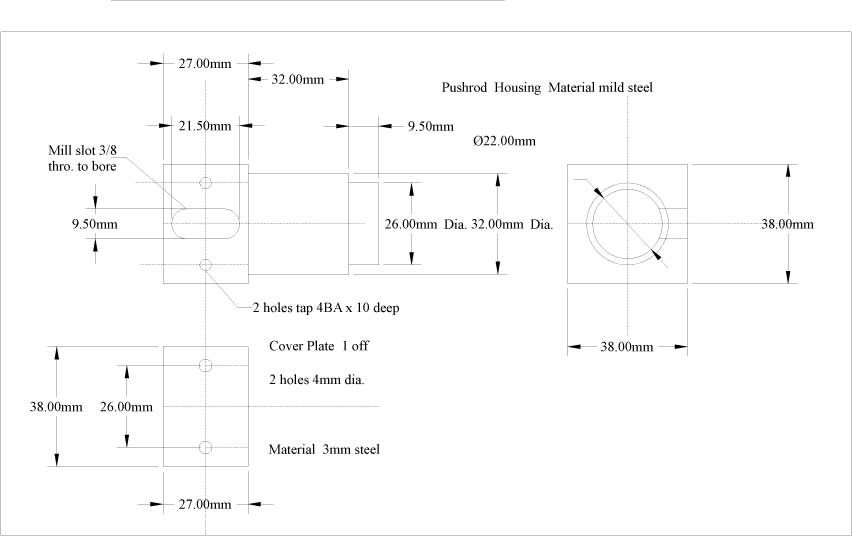

Two missing drawings are here. They will also be printed in M.E. a.s.a.p.

[Gray62Participant @gray62]

Thanks Diane

[mickypeeParticipant @mickypee]

I have a an M300 and would love to have a clutch on it but I haven't seen the article you refer to. Would it be suitable for my lathe? Could you send a link to the drawings?

Mike

[Bill CooperParticipant @billcooper62459]

Hi Mike

Model Engineer Vol 210 – No's 4452 and 4453. I am sure it could fit the M300, albeit with some modification..

Sorry I cannot send a link as I am not certain where the drawings are on the site.

Bill
