Brake unit

[RobonthemoorParticipant @robonthemoor]

How do I remove this brake unit off the top of my gate turret mill G301D all the bolts are out but seems stuck in the centre, need to remove it to change the belt.

[RobonthemoorParticipant @robonthemoor]

How does this remove

[RobonthemoorParticipant @robonthemoor]

Posted by Robonthemoor on 27/12/2016 23:04:56:

How do I remove this brake unit off the top of my gate turret mill G301D all the bolts are out but seems stuck in the centre, need to remove it to change the belt.

I did put a photo of it but it's gone.

[RobonthemoorParticipant @robonthemoor]

[RobonthemoorParticipant @robonthemoor]

See if the photo above can be seen.

[Michael GilliganParticipant @michaelgilligan61133]

Rob

Your photos in this thread are invisible.

Your album is fine … How are you trying to load these?

MichaelG.

Edited By Michael Gilligan on 28/12/2016 09:49:25

[RobonthemoorParticipant @robonthemoor]

Copy paste I'm on a iPad can't seem to get anything else to work, you may be able to tel me how to do it👍

[Gray62Participant @gray62]

Rob, you need to have the photo saved in your album then, in the toolbar of the editor there is a black 'camera' icon, this allows you to insert a picture from an album, click on the camera then choose the picture you want to insert.

[Michael GilliganParticipant @michaelgilligan61133]

Posted by Robonthemoor on 28/12/2016 10:47:38:

Copy paste I'm on a iPad can't seem to get anything else to work, you may be able to tel me how to do it👍

.

Graeme's description should work fine … unless you're on an early version of iOS

My old iPad [original version, running iOS 5.1.1] can't upload to the Albums, but the new one can.

MichaelG.

[RobonthemoorParticipant @robonthemoor]

Posted by Michael Gilligan on 28/12/2016 14:26:21:

Posted by Robonthemoor on 28/12/2016 10:47:38:

Copy paste I'm on a iPad can't seem to get anything else to work, you may be able to tel me how to do it👍

.

Graeme's description should work fine … unless you're on an early version of iOS

My old iPad [original version, running iOS 5.1.1] can't upload to the Albums, but the new one can.

MichaelG.

I get this page cannot be opened now please try later 😡

[RobonthemoorParticipant @robonthemoor]

This is the brake unit finally got the photo to upload😀

[BazyleParticipant @bazyle]

Not much info there. Does the big hole in the background contain the spindle with a surface against which a brake shoe presses? It could be the shoe needs pressing back or does that handle need to come off?

[Alan Waddington 2Participant @alanwaddington2]

Is the handle pinned on with a roll pin ? You might need to remove it to allow the casing to come off.

[wheeltapperParticipant @wheeltapper]

can't see properly but the lever coming from the centre boss looks like it's got a flat on it.

it doesn't just unscrew from the boss, does it?

Roy.

[RobonthemoorParticipant @robonthemoor]

Posted by Bazyle on 28/12/2016 19:01:54:

Not much info there. Does the big hole in the background contain the spindle with a surface against which a brake shoe presses? It could be the shoe needs pressing back or does that handle need to come off?

No that hole take the motor, the spindle is the hole just behind the brake lever,

[RobonthemoorParticipant @robonthemoor]

Posted by wheeltapper on 28/12/2016 23:32:44:

can't see properly but the lever coming from the centre boss looks like it's got a flat on it.

it doesn't just unscrew from the boss, does it?

No I think that part is like a rear brake drum of a car, but I'm not certain 🤔

Roy.

[RobonthemoorParticipant @robonthemoor]

Been told I need to remove a chamfered pin😮 Can't find it😕 Ordered a manual but as manuals go I won't hold my breath.

[RobonthemoorParticipant @robonthemoor]

Posted by Alan Waddington 2 on 28/12/2016 20:08:39:

Is the handle pinned on with a roll pin ? You might need to remove it to allow the casing to come off.

No roll pin

[Nigel McBurney 1Participant @nigelmcburney1]

Gate and Elliott were all part of a business group,and products were very similar,the Elliott turret mill had a similar brake which was a brake drum with two internal expanding shoes,similar in construction to a moped brake and about the same size,had to strip mine as one shoe was seized and binding, can't help with the cover as its different to the Elliott

[RobonthemoorParticipant @robonthemoor]

Thats a good description, moped brake. I'm sure I have seen a head like this gate mill been worked on on utube or one of the forums but can't find it😕

[RobonthemoorParticipant @robonthemoor]

I got it off, a little heat from the heat gun & it just slides off. I will do a full video of the rebuild as nothing on utube for this mill.

[RobonthemoorParticipant @robonthemoor]

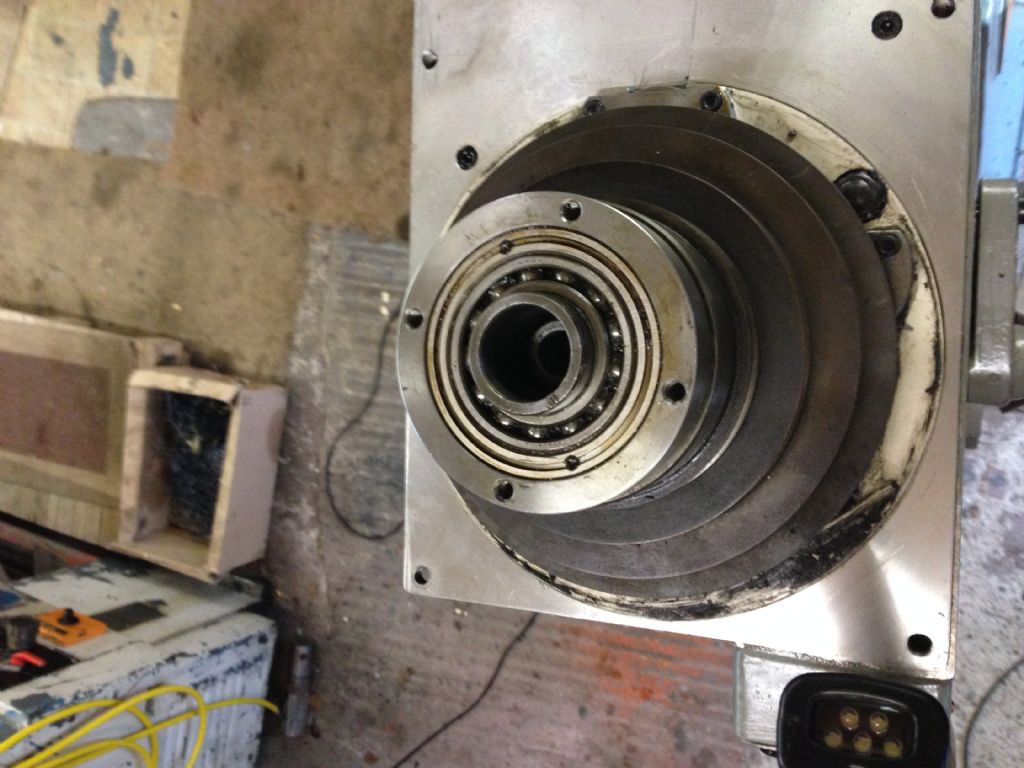

Inside the case when the brake unit has been removed. As you can see just a bearing inside a case, called in the manual as a bearing nut, above the belt pulley.
