MIlling Machine Tripping RCBO

[Ady WilsonParticipant @adywilson52106]

Thanks to everyone who has given me advice. I am going to keep testing and trying to trace the fault.

I will check the pot again on DC.

About testing the mains – I will take the precaution of not coming into contact with the multimeter when the power is on. Should I just take a reading from any power outlet in the house?

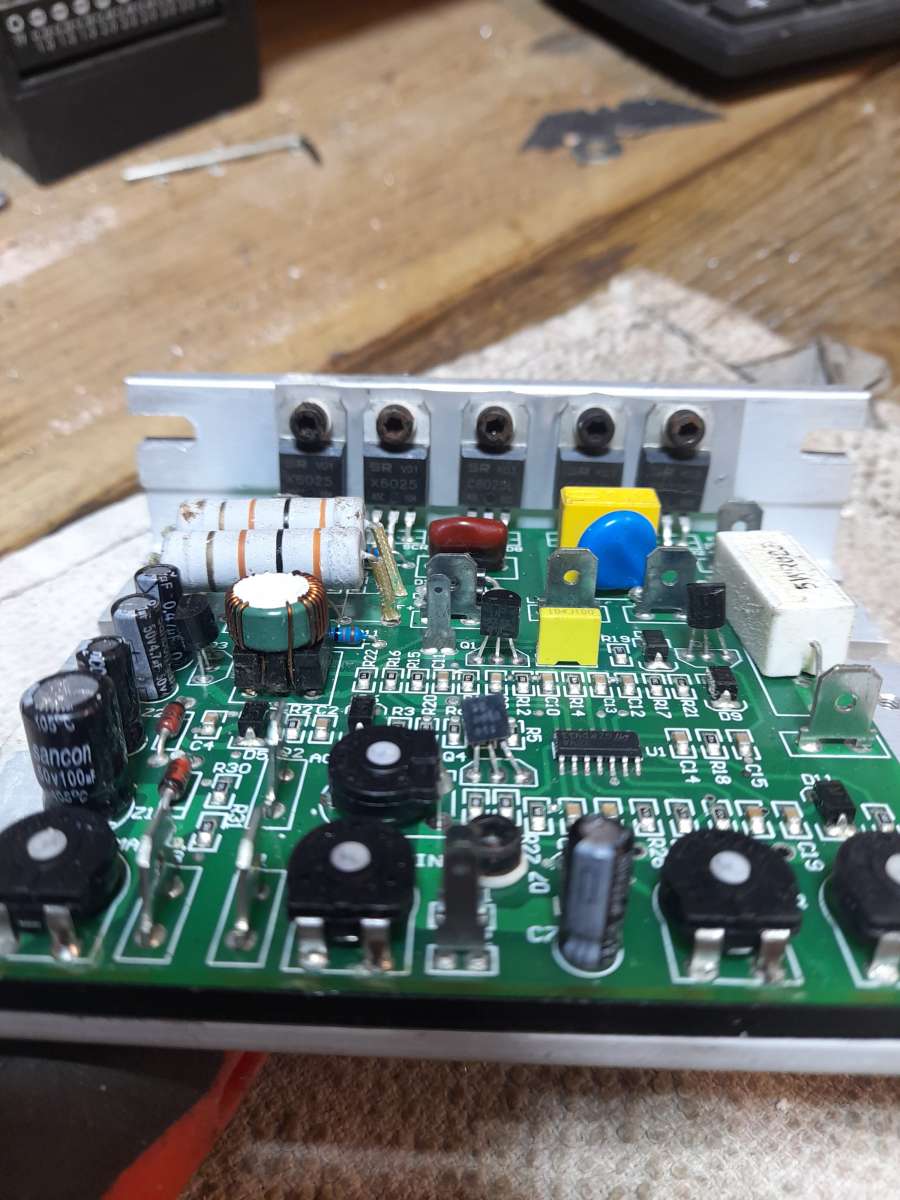

If I run out of options further down the line and am looking at replacement parts there are two boards in the machine. The speed controller –

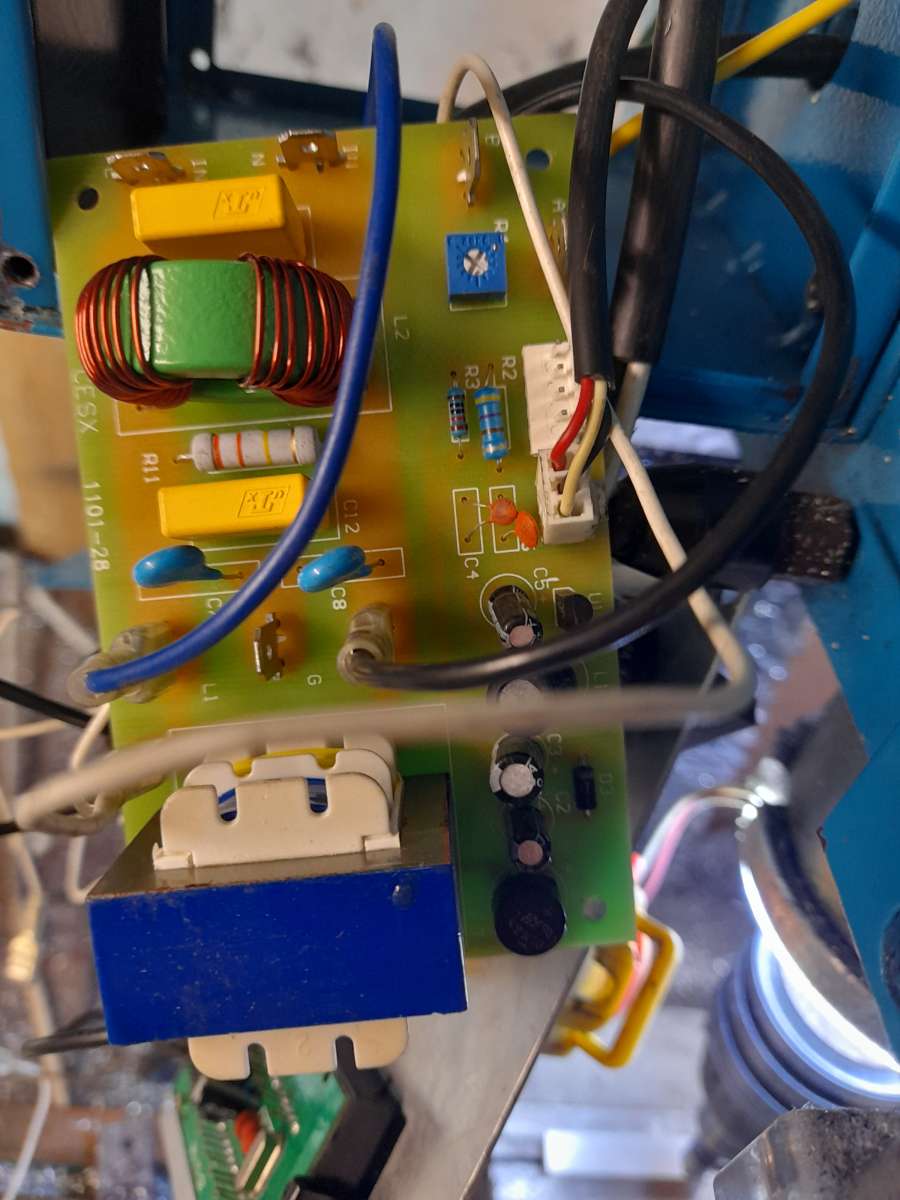

and this one –

I saw this one on eBay and wondered if it would be suitable, it`s very reasonable price wise.

https://www.ebay.co.uk/itm/306543129691?_skw=variable+speed+controller+750w&itmmeta=01KS8S4BP5GFZ2JJD9GJVDGHJW&hash=item475f64f45b:g:dcMAAeSwyTZo6b~7&itmprp=enc%3AAQALAAAA4GfYFPkwiKCW4ZNSs2u11xAblI7mtyA5d9lVb2LGirYeY48qugsvJZb6aGTmOC0n36bOH%2B44PTFRVlOhxEV5dI7mwiVjnlZRLnLmufQ47BBsN%2FO5eQCqcwWN6d382vjB%2FgqJpfYnH2Jr5CsELBTOhIalKfq7%2F98YnPshqSZ4vmIB9y5OGUGBtxLozDKOzMTosOBeht5o%2BiQJenUnlbs6zj86RbXeD3lidi1O6m8PSX%2FnilKowOFXhrqnBAkJst%2FUzgEAamJa5SkfvjITuSHZBsOX5TGG5ex95HbypL6%2FHJ9g%7Ctkp%3ABk9SR7a7kZnKZw

I am guessing I wouldn`t need the second board if I were to use something like this?

Ady

[Ady WilsonParticipant @adywilson52106]

This one looks even better. Just connect mains in and then connect to the motor? £70

Obviously I would need to rule out any other problems first, but if this would work it would be an easy solution for me.

https://www.ebay.co.uk/itm/357600197129?_skw=.%E2%80%BADC+220V+750W+Variable+Speed+Controller+Governor+Electric+Motor&itmmeta=01KS8TWQ45FPZSTMVW5QAP8BEK&hash=item5342a1fa09:g:jLoAAeSw1u1owcxz&itmprp=enc%3AAQALAAABAGfYFPkwiKCW4ZNSs2u11xBqr%2BE6lSUsFg2GYnf1IU%2F7W5VazEPE5w8IpMSMJQPIkW2gPgomkkjHrfwqLpfEUMZKWe8LfXsVHcSTtCLaHsznurX0kvKkzu3wpkIVJWJMh2QqiTlq2VRi0PCevTL4eN70cFS2y5XctHR7lXD56S7Zxd1h9d8JeOIdrpoJbOGr9an7wWamAdKbvSsJY4eUuHnTRPmGLVIeFb58IRGgX0fKEabCgWtu%2BGfpIDViZpMVTco%2F3g0wDNDQPaxbTv3S5KlY8KCmrZdsZU%2F9ymrxkyYfgyo01UYDsSt4NOOCRnhm%2BFetTcP4rtXINxto4MNvt00%3D%7Ctkp%3ABk9SR57y8prKZw

[MacolmParticipant @macolm]

Remember that tripping due to the earth leakage function of a RCBO can only happen if there is a current path to ground/earth. Any circuit area without a ground connection/contact cannot cause it.

Of course, a current spike through the L and N lines could trip the breaker function, but is unlikely in circuitry without also causing obvious component damage. But you never know…

[Robert Atkinson 2Participant @robertatkinson2]

Neither of the two controllers you have shown links to are suitable for your mill. They are for universal motors and you mill has a brushless DC motor.  Additionally they are only rated for 220V not 240. Additionally they don’t have approriate safety approvals.
The second PCB you show from your mill appears to be a Filter and low voltage power supply.
Slightly worring is tha the first PCB, which is the brushless motor driver, is showing signs of having beem exposed to moisture.
I think you need a copetent engineer with correct test equipment to investigate exactly what is going on. I’m about 200 miles away so a bit far.

Robert.

[Ady WilsonParticipant @adywilson52106]

Thanks for all the advice Robert. I managed to find the exact same driver PCB on Aliexpress for £56 and I ordered it. I also got a potentiometer at the same time. If I fit them and there are still problems its got to narrow things down significantly. Hopefully all will work. I will update the thread when I have received and fitted the parts. Thanks to all who have given their time to contribute advice is has been very much appreciated.

Ady
