Cna anyone ID my old lathe?

[Kealan O’CarrollParticipant @kealanocarroll32466]

Hello chaps,

I've just picked up an old lathe and would like to find some docmentation / info on it. Can anyone help me identify it please?
I've put a post up to the same effect on practical machinist but haven't had any joy yet.
I'm told it's German, and a search for "Germany" through the archives of Tony's site brought up a beling & lubke which looks quite similar but the handles on the apron are slightly different.



[img]https://i.imgur.com/0cmKwYR.jpg[/img]

[img]https://i.imgur.com/yT0r2ZX.jpg[/img]

[img]https://i.imgur.com/GF0Xl66.jpg[/img]

[img]https://i.imgur.com/UqwlcQ9.jpg[/img]

[img]https://i.imgur.com/Pe1ZxLl.jpg[/img]

[img]https://i.imgur.com/kBmXe9D.jpg[/img]

[img]https://i.imgur.com/1DmQ1Ji.jpg[/img]

[img]https://i.imgur.com/SYHh49D.jpg[/img]

[img]https://i.imgur.com/R5AGs3h.jpg[/img]

[img]https://i.imgur.com/KmgSYzv.jpg?1[/img]

[img]https://i.imgur.com/R5AGs3h.jpg[/img]

[img]https://i.imgur.com/YpWNK3g.jpg[/img]

Edited By JasonB on 01/03/2018 13:11:23

[Kealan O’CarrollParticipant @kealanocarroll32466]

[David Standing 1Participant @davidstanding1]

Welcome

Your images don't work as posted.

You either need to edit them and take out the [img] and [/img] tags and then insert a http link per the icons above your post, or post them into a photo album here and link them from that

[Kealan O’CarrollParticipant @kealanocarroll32466]

[img]https://i.imgur.com/0cmKwYR.jpg[/img]

Bear with me!

**LINK**

**LINK**

**LINK**

**LINK**

**LINK**

**LINK**

**LINK**

**LINK**

**LINK**

https://i.imgur.com/KmgSYzv.jpg?1

**LINK**

**LINK**

[David Standing 1Participant @davidstanding1]

Working now

[larry PhelanParticipant @larryphelan54019]

Looks like a fairly hefty bit of kit !

Would love to hear how it shapes up.

[Phil WhitleyParticipant @philwhitley94135]

When you get it set up on its legs, send a pic to tony@lathes.co.uk or have a troll through the worlds biggest machine tool archive at http://www.lathes.co.uk. Very well made machine by the looks of it, and gap bed too! Good luck!

[Howard LewisParticipant @howardlewis46836]

Looks to be a useful machine, especially if you can find the changewheels to connect mandrel to the gearbox / leadscrew. Keep us abreast of your progress, please!

Howard

[Kealan O’CarrollParticipant @kealanocarroll32466]

Hi all,

I got it put together today (eventually). I broke a timber lifting frame and ended up putting up part of a scaffold tower inside the garage and incrementally ratchet strapping it up to it's normal height and then bolting the legs on to the bottom of it. An engine crane would have been ideal!

I've got around 8 changewheels for it, but haven't checked the numbers yet (I did see a 127) so I'm not sure what pitches I can cut yet.

The carriage does get tight when the tailstock is off and it's moved right down to the end of the ways, so they're probably worn but if I'm spending most of my time within 6 inches of the chuck then I'm thinking it may not be an issue?

I ran it and made some chips from a scrap bolt I had laying about…at least it runs! I have a load of HSS blanks I got with it, but some of the smaller ones are lost in the toolpost and the larger bits that do actually fit the toolpost are ground miles above centreline. It's dead quiet with just the spindle running, but the tumbler is horrendously noisy when engaged in either direction, as is the powerfeed speed selector gearbox. The 3 – jaw also took both hands on the key to budge, so I took the jaws out and the spiral & the jaws are all gummed up in what looks like old dried up grease so that will need stripping and cleaning.

The half nut and, handwheel, and slides all have a lot of backlash too; I don't know if this will actually be an issue or if I can just go beyond my start point and take up the backlash to work around it?

Link to the assembled picture below; I don't know how to embed it. I'll post some pictures of the lifting arrangement later if anyone wants a laugh…

http://www.model-engineer.co.uk/albums/member_photo.asp?a=47788&p=792983

[Michael GilliganParticipant @michaelgilligan61133]

Kealan,

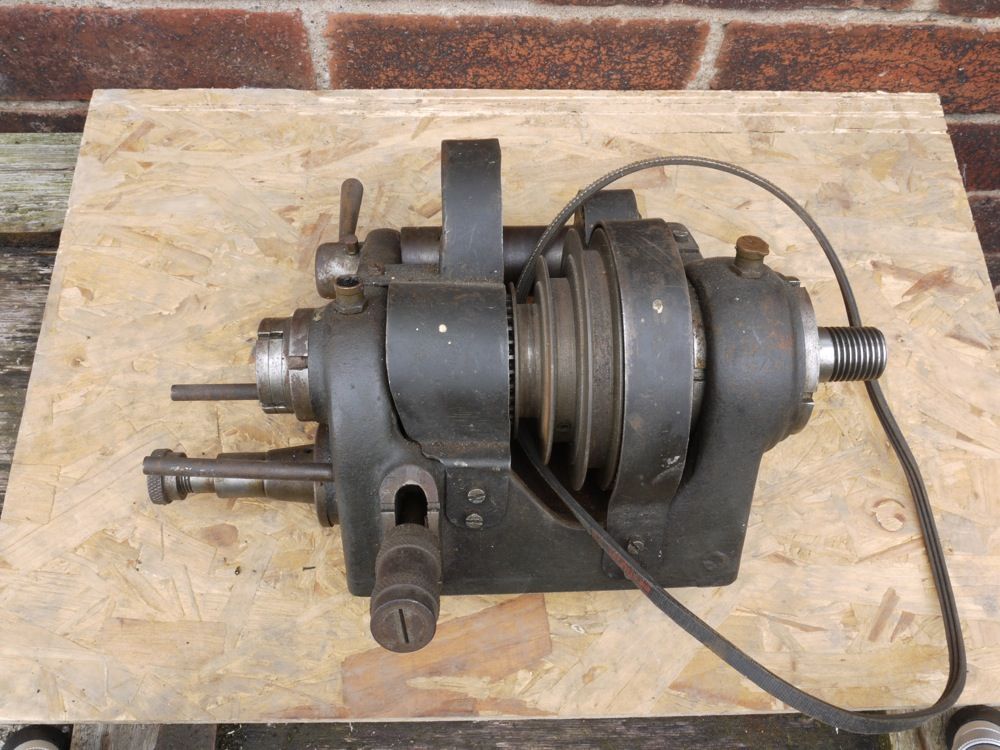

I will be very interested if you find the maker … because it looks rather like a 'big brother' to my own mystery lathe:

The inboard tumbler reverse arrangement should help with identification … but I've got nowhere yet.

MichaelG.

.

Yes, I do have the rest of it.

[Michael GilliganParticipant @michaelgilligan61133]

IXL/Ehrlich looks promising: **LINK**

http://www.lathes.co.uk/ixl/

MichaelG.
