Hi
Can anyone help me with the dimensions of the steering brackets for the 1.5" allchin
The details are not on the drawings but a note says the dimensions are in ME vol 135 on page 653
Can anyone send me a screenshot
Thanks
Dougie

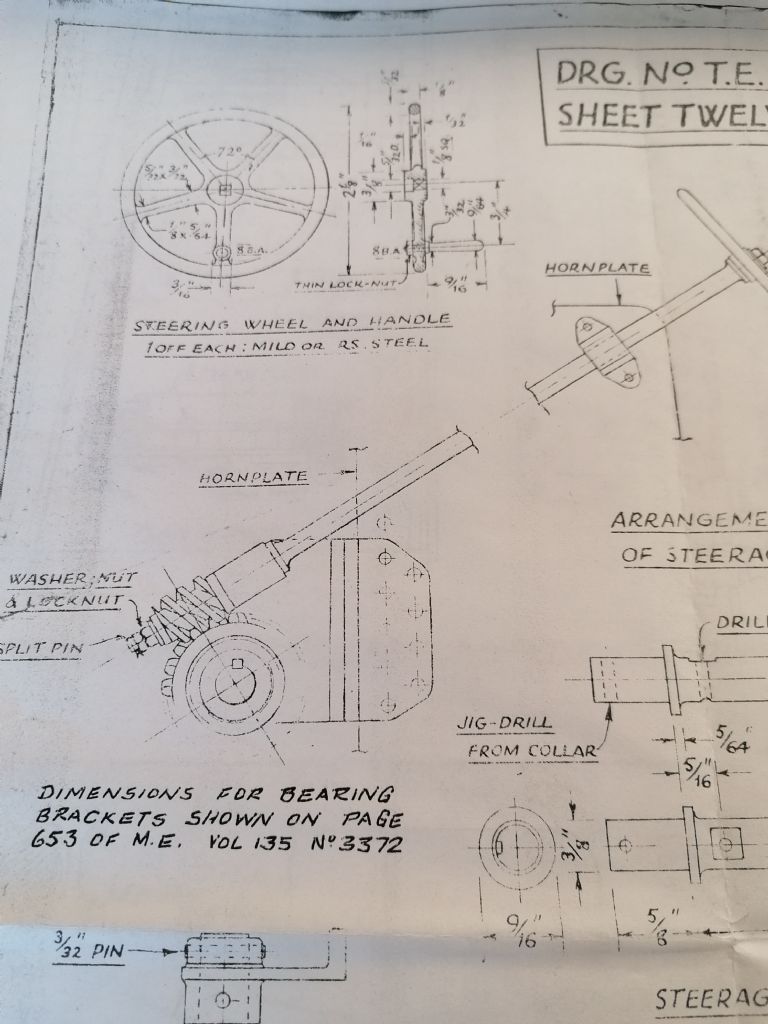

It's on my drawing No2, the Hornplate one and also shown in the book on the same drawing.
Thanks Jason
Sorry I wasn't specific about the bracket
Its the one shown on sheet 12 for holding the worm and wheel and the chain drum

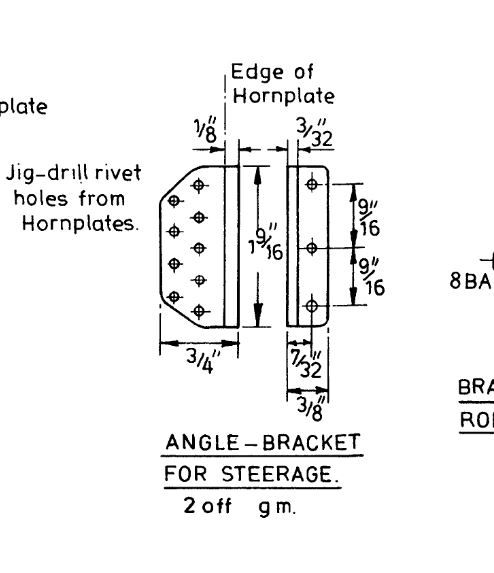

This is what's on my drawing No12, looks enough info there?
Thanks Jason, that's exactly what I needed

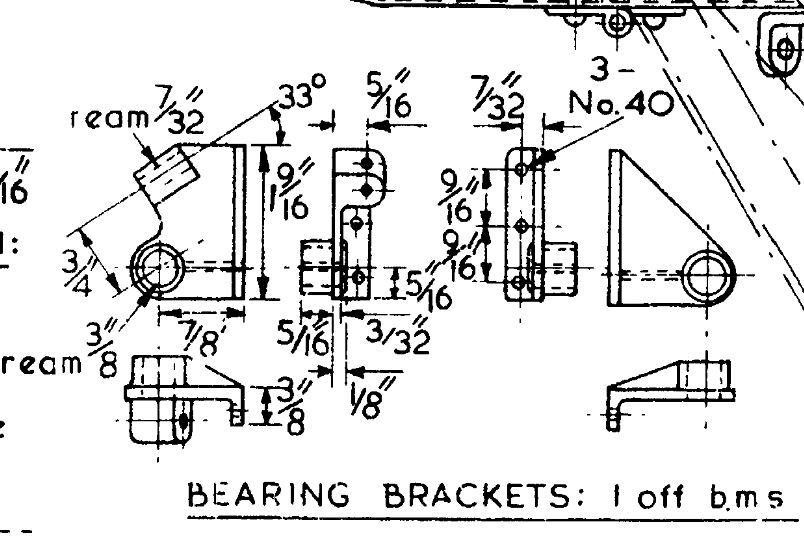

This is all that's on my drawings
On my drawings, the dimensional details of the brackets are to the right on the image above, ie just off-screen. They are the same as posted by Jason except the angle is given as 31.5deg.
These drawings were purchased from Reeves in the '70s.

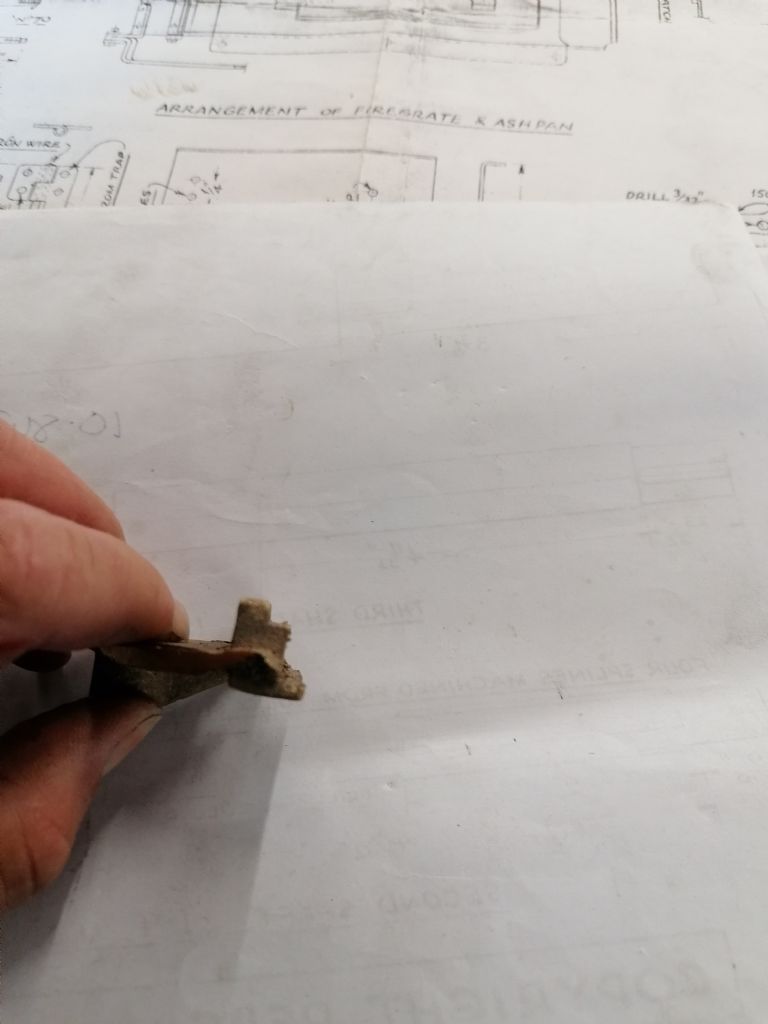

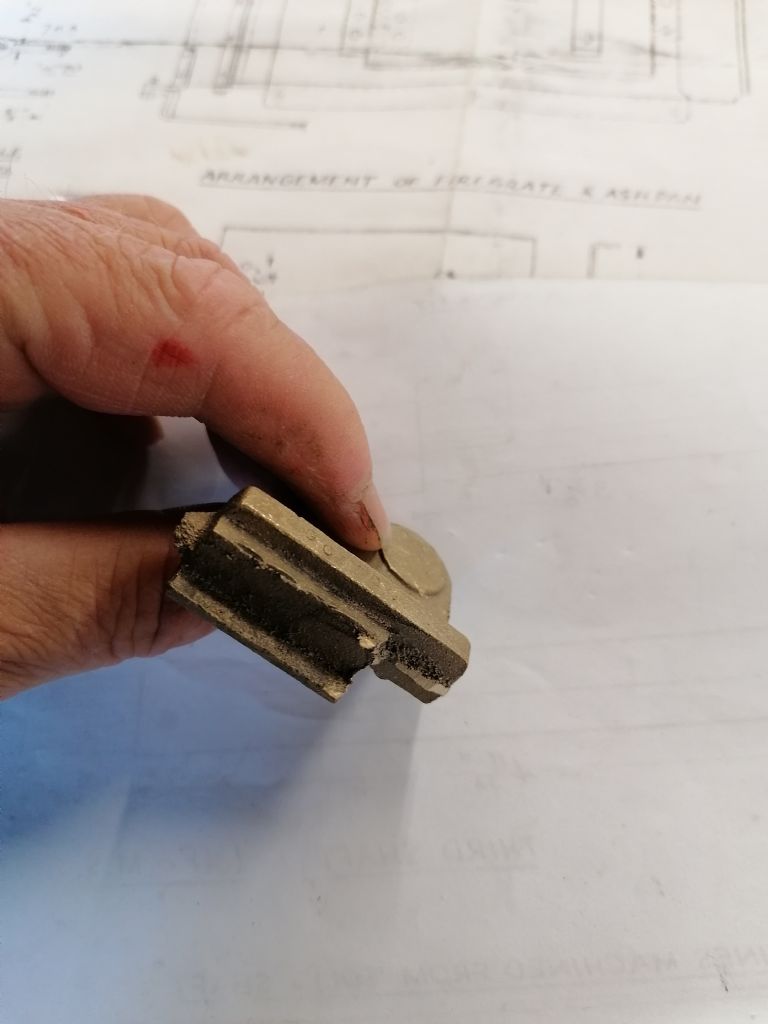

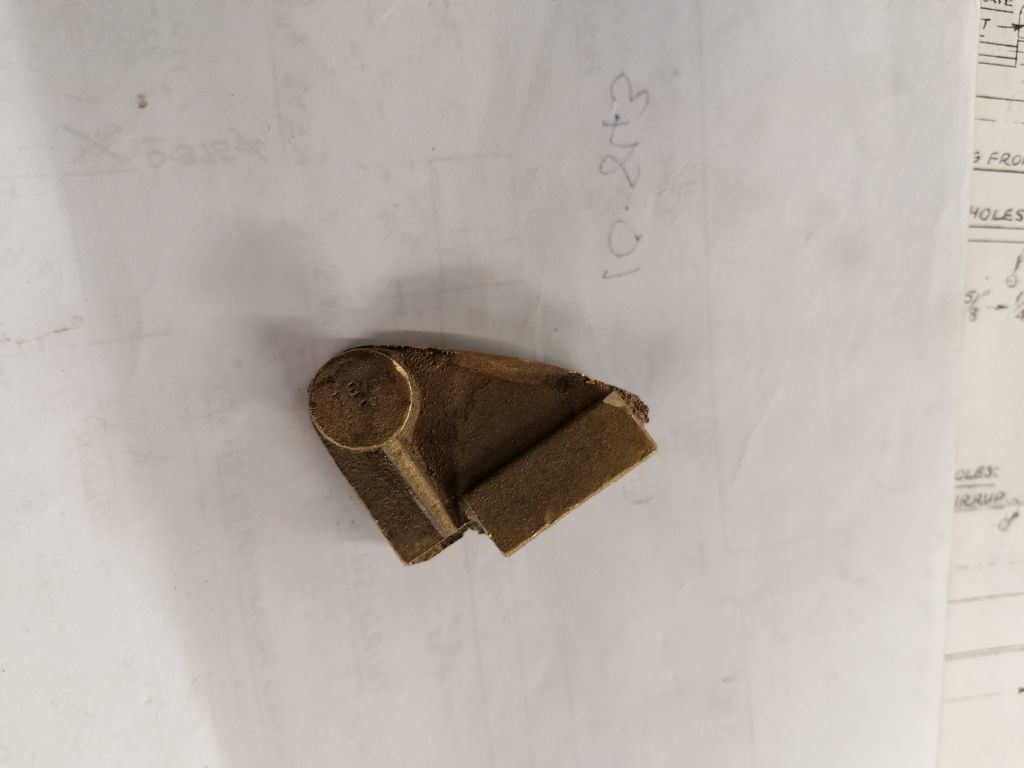

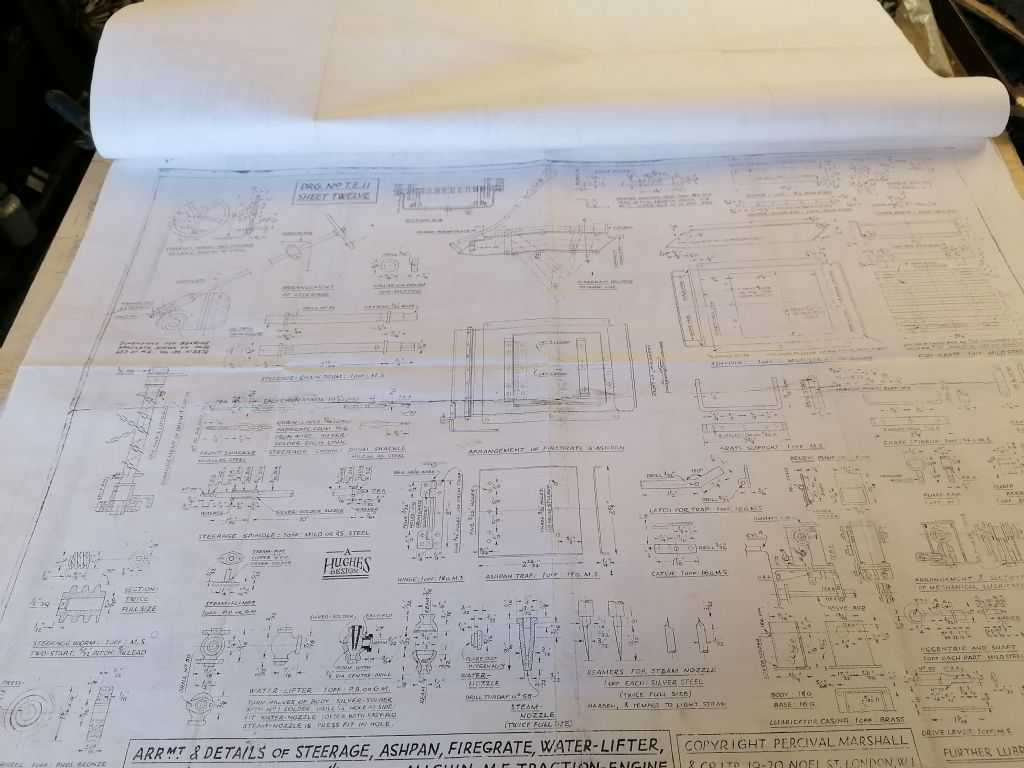

These are more pics of my sheet 12 and the casting of the bracket I got. It has extra bits compared to the drawings Jason sent
I don't have the inclination to try to hob the worm and wheel as described for this engine
Can anyone suggest a dp or mod set of the nearest size that would be suitable
Reeves do the worm & wheel set
I think I can get a set a bit cheaper from hpc or elsewhere
