    Mike Brett
    Participant
      @mikebrett89695

      Hi

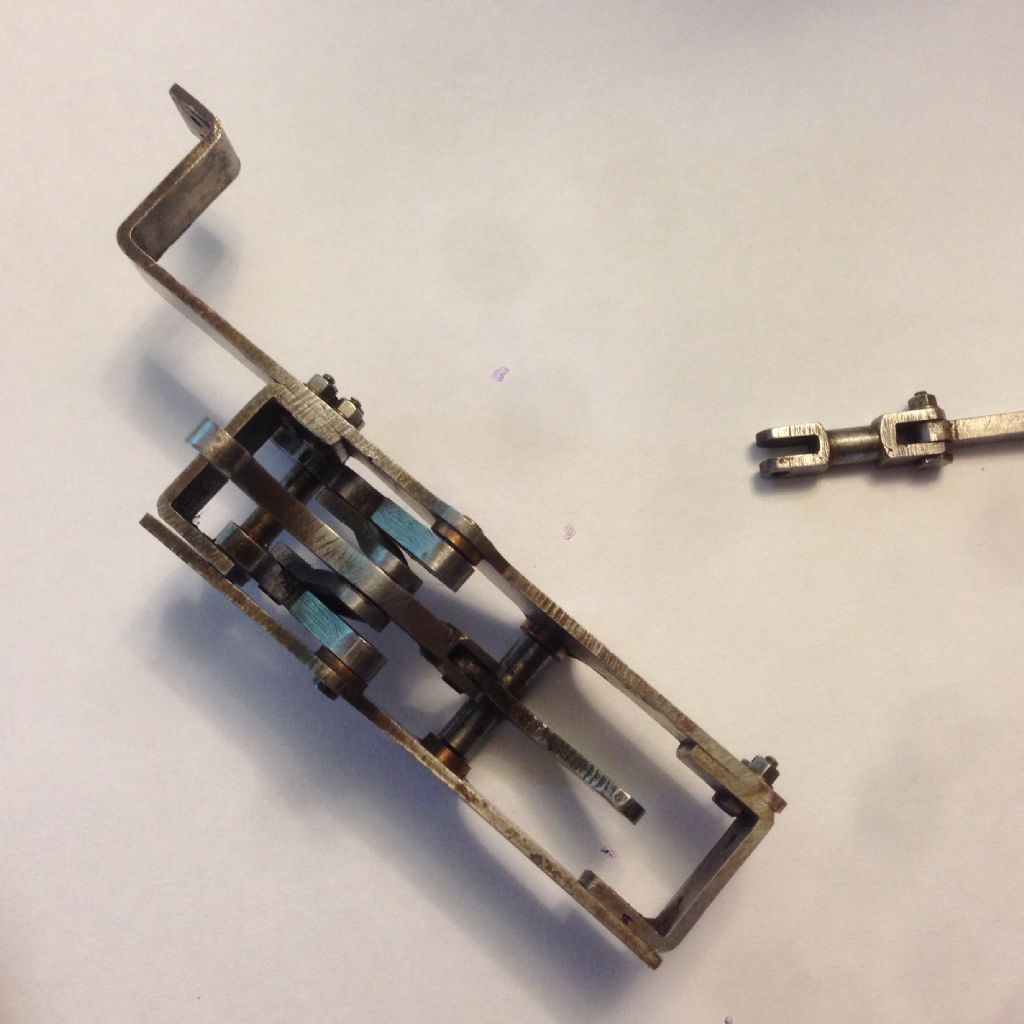

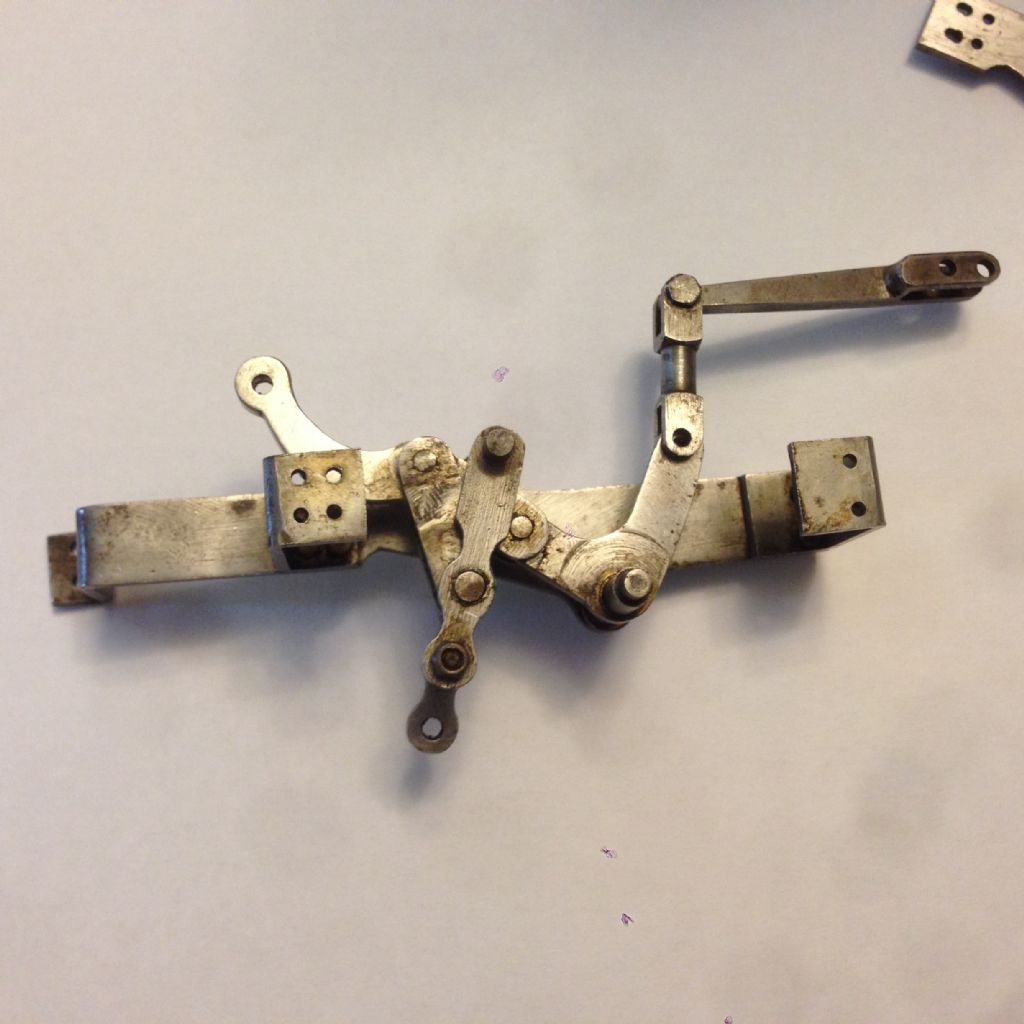

      This arrived with a job lot . I think it is part of Walschaerts valve gear. If it is I would like to incorporate it in my engine build. Would the top left lever go to the piston valve , the bottom lever to the crank / eccentric, and the right lever to the cab operating control.




      Cheers Mike

      Advert
      #32764
      Mike Brett
      Participant
        @mikebrett89695

        Help to identify

        #251919
        John Olsen
        Participant
          @johnolsen79199

          Hi Mike,

          That is in fact a Baker valve gear assembly. It is kind of a cousin to the Walschaerts gear, although very different in the construction. One big advantage is that there is no sliding die block and link, and another is that the gear can be made so that it can be unbolted off the locomotive and replaced quite quickly. If you do a google search on "Baker Valve gear" you will find quite a lot of useful information about the gear, including a Wikipedia entry and some animations. It is an excellent gear so provided it is about the right size you could probably adapt it.

          John

          #251927
          Perko7
          Participant
            @perko7

            Another advantage of the Baker gear, if constructed appropriately, is that it is not 'handed' so the same assembly can be used on either the left hand or right hand side of the loco, which made for more economical construction and parts storage.

            #251939
            Mike Brett
            Participant
              @mikebrett89695

              Many thanks Guys.
